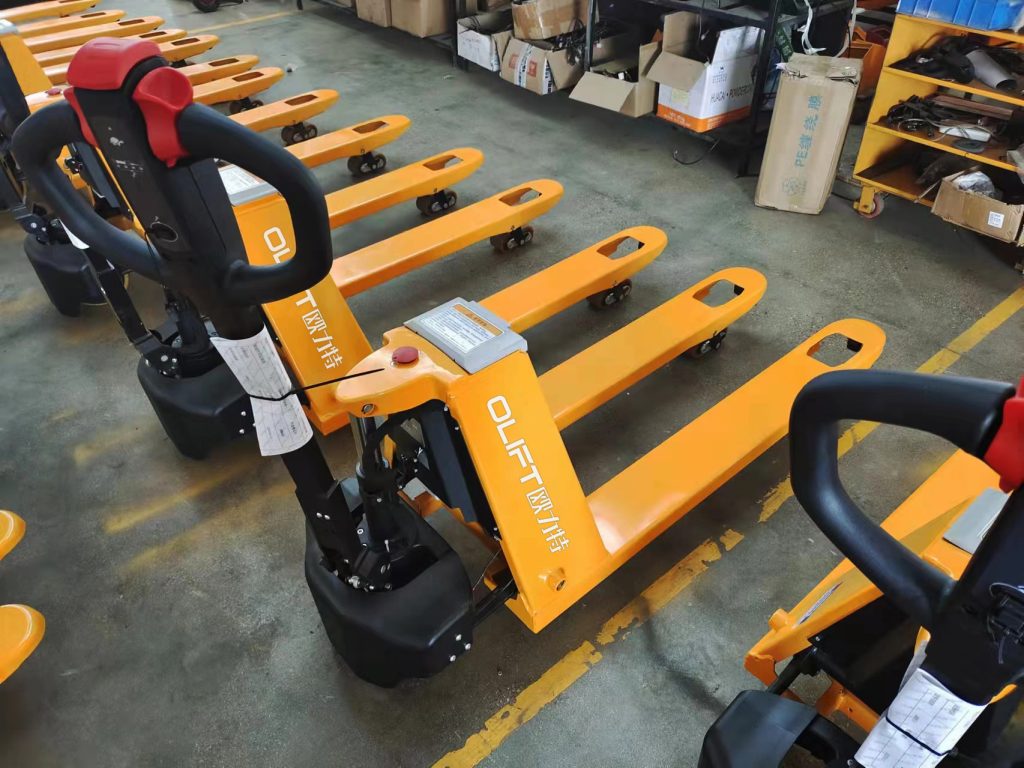

Mini Walkie Electric Pallet TP15
Advantages:
Permanent magnet drive motor，compact structure，easy maintenance.
Stepless speed control system, easy to operate
Battery open design, easy to replacement.
Built-in charger is standard
Sealed batteries free of maintenance , safe operation and no pollution
Small body, suitable for narrow space.
Fork fit for double-deck pallet
Automatic lifting limit, safety, energy saving.
Emergency reversing device and emergency brake switch
Low noise ,low energy consumption, every day only 2KWh.
Model TP15
Load capacity kg 1500
Load center mm 600
Wheel base mm 1301
Operating type Walkie
Wheel quantity Driving wheel/Balance wheel /Bearing wheel 1/0/4
Driving wheel size mm ￠252*67
Balance wheel size mm ￠84×70（Double wheels）
Bearing wheel size mm –
Min.fork lowered height mm 85
Max.fork lifting height mm 205
Max.lifting height mm 120
Outside width between forks mm 550/600/650/685
Inside width between forks 230/280/330/365
Fork length mm 1150/1200
Fork width mm 160
Fork thickness mm 55
Overall length mm 1707
Overall width mm 697
Overall height(With handle) mm 1181
Overall height(Without handle) mm 714
Min.Turning radius mm 1547
Min.Aisle width for pallets 800×1200 mm 1920
Min.Aisle width for pallets 1000×1200 mm 1953
Travel speed,laden/unladen km/h 3/3.5
Lift speed,laden/unladen mm/s 56/60
Lowering speed,laden/unladen mm/s 57/59
Gradeability,laden/unladen % 43958
Drive motor kw DC 0.65
Lift motor kw DC 0.8
Battery voltage / capacity v/ah 24/70
Brake Electromagnetic / Regenerative
Battery weight kg 48
Service weight with battery kg 275
