Fork Mounted Automatically!

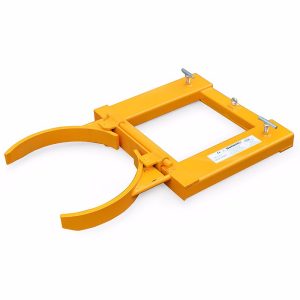

Easily and quickly lift drums without hydraulic or electric connections. Simply slip onto forks an tighten hand screws. Heavy duty steel construction. Lifts, transports, and deposits drums without leaving the driving position. Firm pressure is automatically applied by action of the loaded drum and will be firmly maintained in the same position until being deposited, it is then automatically released.

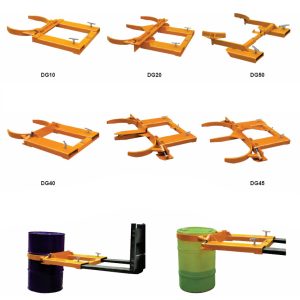

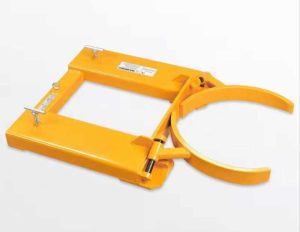

| Model | DG10 | DG20 | DG30 | DG40 | DG45 | DG50 | |
|---|---|---|---|---|---|---|---|
| Drum Type | Single Steel Drum | Double Steel Drum | Adjustable, Single Steel Drum | Adjustable, Steel / Plastic Drum | Adjustable, Double Steel Drum | Adjustable, Single Poly Drum | |
| Capacity | (lbs / per drum) | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Drum | (Gallon) | 55 | 55 | 30 or 55 | 30 or 55 | 30 or 55 | 30 or 55 |
| Fork Pockets | (inch0 | 51/2×2 | 7×21/4 | 51/2×2 | 7×21/4 | 7×21/4 | 53/8×11/2 |
| Net Weight | (lbs) | 121 | 198 | 115 | 125 | 194 | 41 |
Safe drum dumping requires well-designed, ergonomic drum handling equipment to reduce risks of injury or property damage. Our hydraulic Drum Carriers, drum dumpers A308 combine incredible strength with simple drum handling by one person.
One person operate easily. * Self-standing with kickstand. * 10 rubber wheel let you operate with less effort. * Safely carry and grip the drum.
The economical, safe way to tip, drain and store 55 gallon drums. Self-storing load tipping lever. Nylon castor and wheels 3”. Drum height 15” off floor. Easy step to drum draining and storage. Place cradle next to drum. Place hook over drum chime. Tip load on curved section. Move load to on-the-job location.
