Capacity 600lbs
The economical, safe way to tip, drain and store 55 gallon drums.
Self-storing load tipping lever.
Nylon castor and wheels 3”.
Drum height 15” off floor.
Easy-to-assemble.
Overall dimension: 321/2”×191/2”×21” (L×W×H)
Easy step to drum draining and storage.

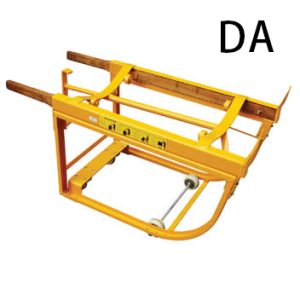

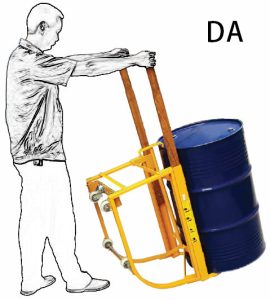

Optional model: DF10 DA

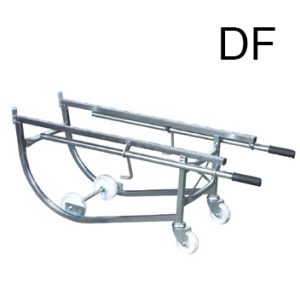

| Model | DF10 | ||
|---|---|---|---|
| Drum Type | 210 litre steel | ||
| Front Wheel | (mm) | Φ125×35 | |
| Rear Castor | (mm) | Φ100×35 | |
| Net Weight | (kg) | 14.5 |

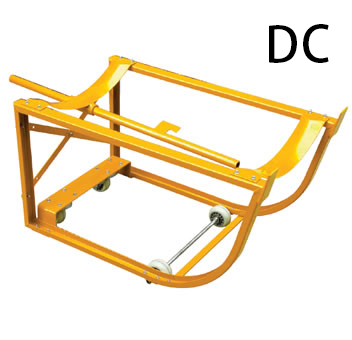

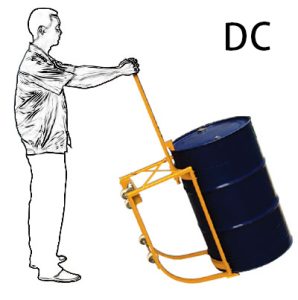

| Model | DC10 | DC20 | DC30 |
|---|---|---|---|
| Front Wheel | Inboard | Outboard | Inboard |
| Rear Castor | No | Yes | Yes |
| Net Weight (kg/lbs) | 15/33 | 16/35 | 16/35 |
Safe drum dumping requires well-designed, ergonomic drum handling equipment to reduce risks of injury or property damage. Our hydraulic Drum Carriers, drum dumpers A308 combine incredible strength with simple drum handling by one person.

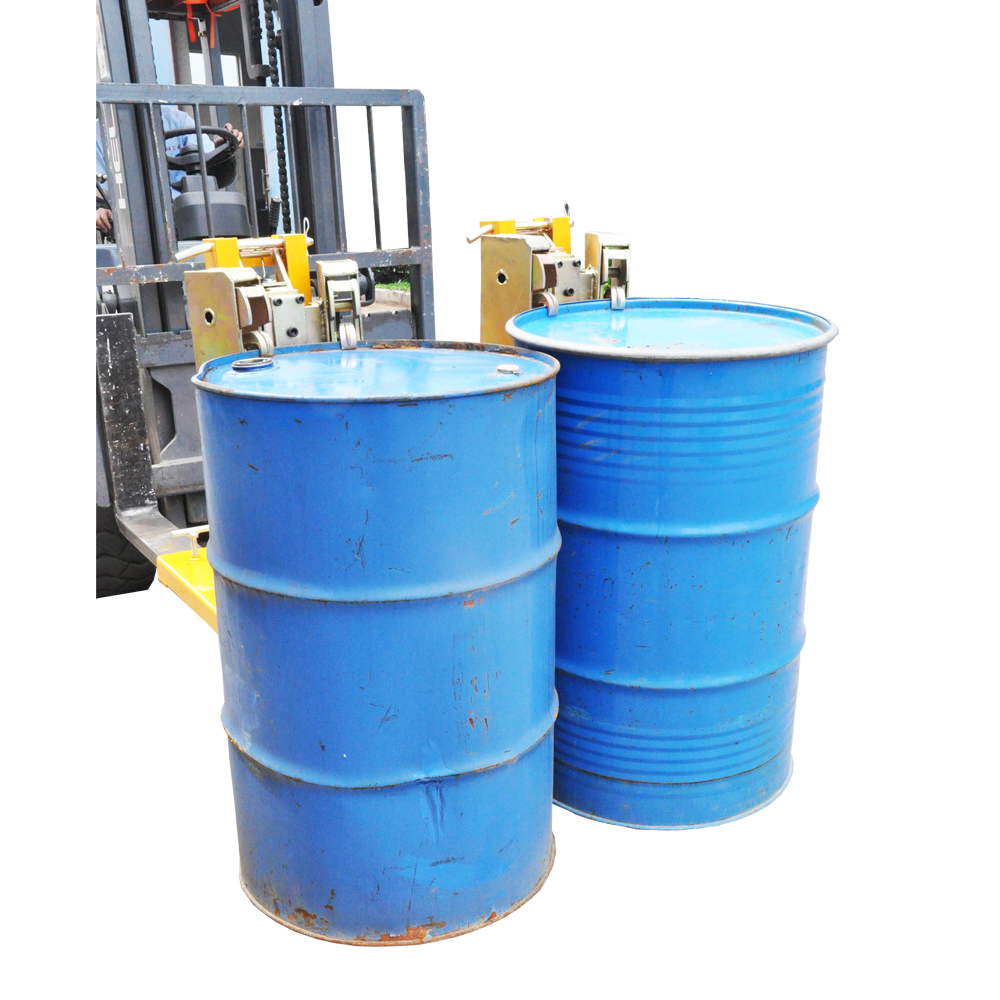

* Fork Mounted Automatically! * Easily and quickly lift drums without hydraulic or electric connections. Simply slip onto forks an tighten hand screws. Heavy duty steel construction. Lifts, transports, and deposits drums without leaving the driving position.
The advantage of the oil drum truck is that the structure of the whole vehicle is simple and light, and the operation is simple and labor-saving. One person can complete the transportation, stacking, stacking and loading and unloading of the entire oil drum.
