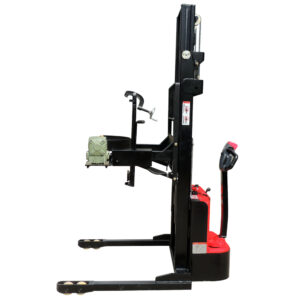

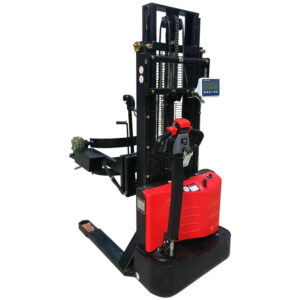

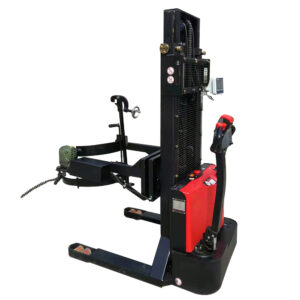

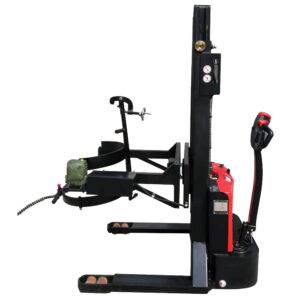

Oil drum trucks are mainly used for lifting, transporting, rotating, tilting and draining a fully loaded oil drum.
Single barrel chuck, self-locking, safe and reliable;
Long fixture life and quick return;
One barrel for dual purposes: the two functions of transporting and dumping oil are integrated;
Easy to operate and improve efficiency;
The application is widespread and popular;
| Model | A330 | |
|---|---|---|
| Capacity | kg | 500kg |
| Lifting height | mm | 1500/2000/2500/3000 |
| Precision | g | 3/1000 |
| Lifting motor | V/Kw | 24/2.2 |
| Driving motor | V/Kw | 24/0.65 |
| Walking speed(laden/ unladen) | Km/H | 4/4.5 |
| Lifting speed (laden/ unladen) | M/s | 0.12/0.22 |
| Lowering speed (laden/ unladen) | M/s | 0.12/0.11 |
| Battery | V/Ah | 2*12/105 |
| Overall length | mm | 1480 |
| Overall width | mm | 800 |
| Overall height | mm | 2080 |
| Net weight | kg | 380 |
| Others | With scale | |
| Operate method | Electric lifting and walking | |
| Rotate method | Electric rotating | |
| Brake | Battery brake | |
| Controller | CURTIS 1212P | |
| Gradeability | % | 5~7 |
Safe drum dumping requires well-designed, ergonomic drum handling equipment to reduce risks of injury or property damage. Our hydraulic Drum Carriers, drum dumpers A308 combine incredible strength with simple drum handling by one person.
The Full electric drum Dumping Truck make easy tasks of handling plastic, fibre and steel drums. This is the most ergonomic equipment available for transporting, manipulating, weighing and dispensing drums, with models suitable for most applications.
The advantage of the oil drum truck is that the structure of the whole vehicle is simple and light, and the operation is simple and labor-saving. One person can complete the transportation, stacking, stacking and loading and unloading of the entire oil drum.
