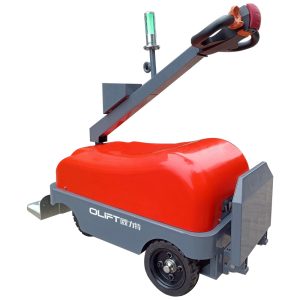

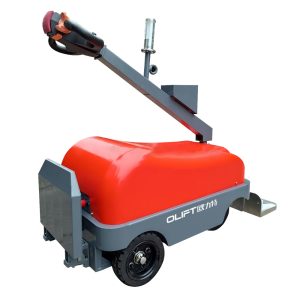

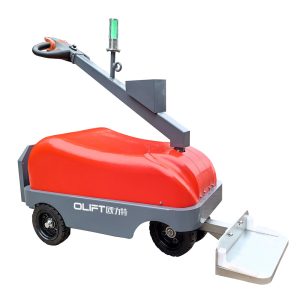

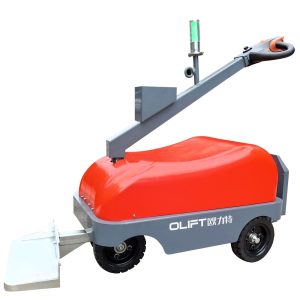

This airport baggage (supermarket) electric tractor is designed to solve the problem of batch collection and transportation of baggage trolleys and cargo carts in large places such as airports, supermarkets, warehouses, etc. It integrates an efficient power system and an intelligent operation interface, aiming to reduce the labor burden, improve transportation efficiency, and ensure safe and convenient operation.
Dual-mode operating system:

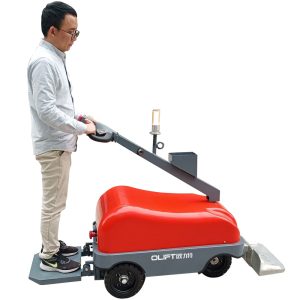

Stand-on operation: Stand directly on the driving platform and control the direction, speed, etc. through the control panel, which is suitable for long-term and continuous operation.
Remote control operation: Equipped with a wireless remote control, the vehicle can be accurately controlled at a long distance (depending on the model), which is particularly suitable for use in complex or crowded areas, improving operational flexibility and safety.
Model | TT12L | |
---|---|---|
Power supply | Electric | |
Operating type | Standing type | |
Max traction weight | Kg | 1200 |
Rated pulling force | N | 350 |
Wheelbase | mm | 680 |
Weigh | ||
Truck weight (with battery) | Kg | 215 |
Battery weight | Kg | 70 |
Tyre | ||
Tire type,Drive wheel/Supporting wheel | PU Rubber/PU | |
Sizes of drive wheel(diameter X width) | mm | 2XΦ250×75 |
Sizes of Supporting wheel (diameter X width) | mm | 2XΦ250×75 |
Drive wheel/Supporting wheel number (X=Drive wheel) | mm | 2x/2 |
Front gauge | mm | 575 |
Dimensions | ||
Overall heigh | mm | 1185 |
Height of tiller in drive position | mm | 1100 |
Hook height | mm | 116 |
Overall length | mm | 1485 |
Overall width | mm | 645 |
Ground clearance | mm | 100 |
Turning radius | mm | 1290 |
Performance | ||
Drive speed load/unload | Km/h | 5—7 |
Rated pulling force | N | 300 |
Max pulling force | N | 500 |
Max grade ability load/unload | % | 5% |
Brake type | Electromagnetic | |
Motor | ||
Drive motor rating S260min | V/Kw | 0.8 |
Charger(external) | V/A | 24V/10A |
K20 Battery voltage/nominal capacity | V/Ah | 2×12/107 |
Battery weight | Kg | 70 |
Others | ||
Type of drive control | DC | |
Steering type | Mechanics | |
Noise level | dB(A) | <70 |
Type of trailer coupling | Latch |
*Small platform for special size material. *High quality norm power pack from Europe for stable and safe lifting. *Upper platform fitted with aluminium safety bar preventing descent on contact with obstructions
Hydraulic lifting system, the far-end control and multi-control points at the different floors could be realized hierarchical control. Stop anywhere at the pre-concerted and accurate location point.
Self-leveling fully adjustable, weight sensitive. Designed to maintain an ideal working height for assembly lines and loading/unloading operations. Balance to achieved by double springs fitted to the shock absorbers. Simple to operate spring tension adjustment.
