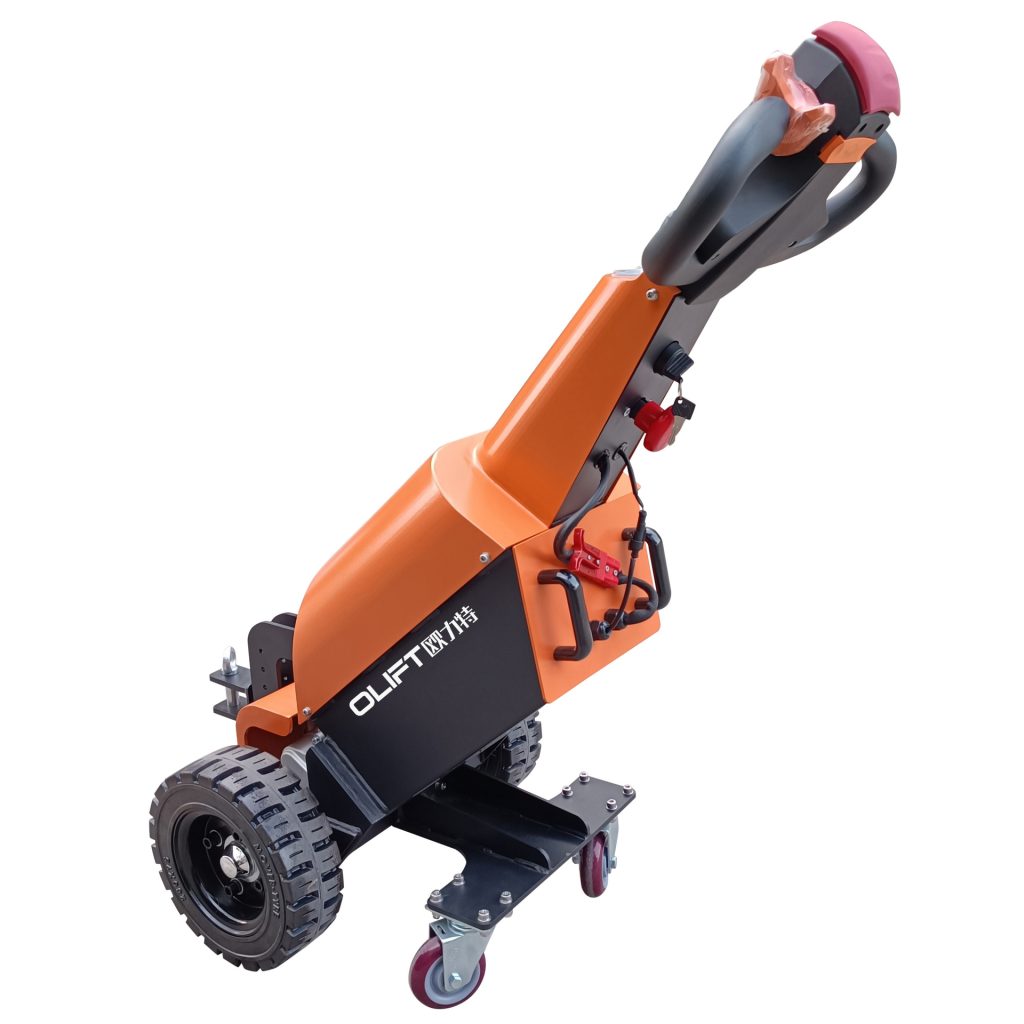

Electric Tug TT10M TT15M

Electric tow tug tractor for move cages and trolley
1. Appearance design The appearance design is excellent and the stability is strong 2. Lightweight and flexible The vehicle is small in size, light in weight, comfortable and flexible to operate, and easy to control. 3. Smooth operation The traction is large, the operation is smooth, the passing ability is good, and the handle height can be adjusted according to people of different heights. 4. Good shock absorption The use of high-quality tires makes the vehicle have good shock absorption, not easy to slip, and good passing ability. 5. Easy to operate The body has an ergonomic handle, and there are many function shortcut buttons on the handle, which is convenient for users to quickly get started and use. 6. Usage scenario The walking traction is multifunctional and has a wide range of applications. It is suitable for supermarkets, warehouses, airports, ports, railway transportation, construction sites and other places.

electric tractor tug electric tractor
Electric tow tug tractor for move cages and trolley
electric tractor tug electric tractor
electric tractor tug electric tractor
electric tractor tug electric tractor

ModelTT10MTT15M
Power supplyElectricElectric
Operating typeTow tugsTow tugs
Max traction weightKg10001500
Rated pulling forceN350500
Wheelbasemm320320
Truck weight (with battery)Kg120135
Battery weightKg1515
Tire type(Drive /Supporting wheel)Solid rubber wheelSolid rubber wheel
Sizes of drive wheel(diameter x width)mm2xΦ280×952xΦ280×127
Sizes of bearing wheel (diameter x width)mm2xΦ100×322xΦ100×32
Sizes of Supporting wheel (diameter x width)mm100×50100×50
Drive/Supporting wheel No. (X=Drive wheel)mm2x/22x/2
Front gaugemm370370
Overall heightmm10901090
Height of tiller in drive positionmm10101010
Optional hook heightmm187/247/277/307187/217/247/277/307
Overall lengthmm10251025
Overall widthmm560610
Ground clearancemm100100
Turning radiusmm795805
Drive speed load/unloadKm/h3~53~5
Rated pulling forceN350500
Max pulling forceN500650
Max grade ability load/unload%55
Brake typeElectromagneticElectromagnetic
Drive motor rating S260minV/Kw0.81
Charger(external)V/A29.2/1029.2/10
Lithhium battery capacityV/Ah25.6/3625.6/36
Battery weightKg1515
Type of drive controlDCDC
Steering typeMechanicalMechanical
Noise leveldB(A)<70<70
Traction coupling typePin typePin type

    We will answer your email shortly!

    Seated Electric Tow Tractor

    The sit-on electric tow tractor controls the direction and speed through the handle, which is suitable for long-term and continuous operation. Precisely control the vehicle, especially suitable for use in complex or crowded areas, to improve operational flexibility and safety.

    Small stainless steel Tractor Electric Tow Tractor TT15MS

    Small Stainless Steel Tractor Electric Tow Tractor

    This electric tow tractor is designed to solve the problem of batch collection and transportation of luggage trolleys and cargo carts in large places such as airports, supermarkets, warehouses, etc.

    Airport Baggage (Supermarket) Electric Tractor

    The tractor trailer is very small, light, extremely flexible and compact; the reduction box adopts a differential structure, making it comfortable and flexible to operate.
