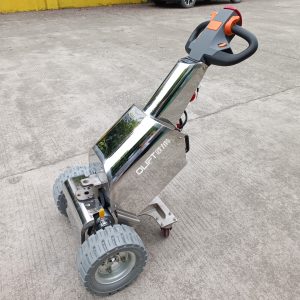

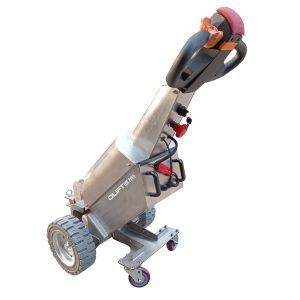

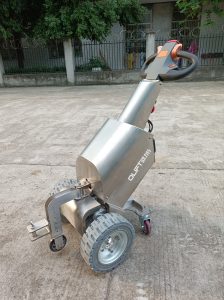

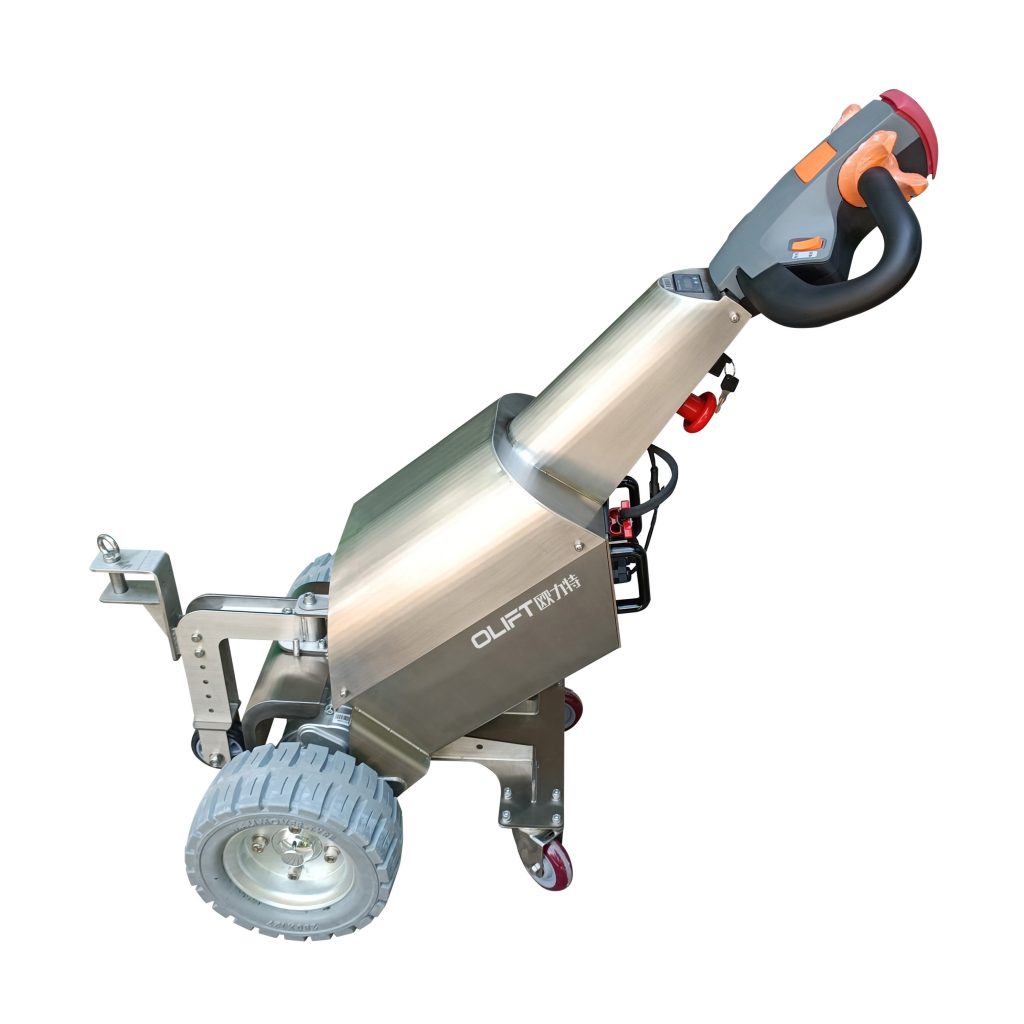

Walking tractor, small tractor for airport, electric tractor for luggage transportation; suitable for towing various trolleys and logistics trolley-type transfer vehicles.
It is very suitable for pulling goods in a small space and short distance and can transport goods quickly and conveniently. It is suitable for supermarkets, hospitals, airports, laboratories, and the advantages of trailers are particularly obvious when moving small loads in a short distance.
24 V maintenance-free AC traction motor
Integrated charger allows charging at any socket.
Various connection systems for various trailer models
| Model | TT10MS | TT15MS | |
|---|---|---|---|
| Power supply | Electric | Electric | |
| Operating type | Tow tugs | Tow tugs | |
| Max traction weight | Kg | 1000 | 1500 |
| Rated pulling force | N | 450 | 600 |
| Wheelbase | mm | 320 | 320 |
| Truck weight (with battery) | Kg | 120 | 130 |
| Battery weight | Kg | 15 | 15 |
| Tire type，Drive wheel/Supporting wheel | Rubber | Rubber | |
| Sizes of drive wheel(diameter X width) | mm | 2xΦ280×95 | 2xΦ280×127 |
| Sizes of bearing wheel (diameter X width) | mm | 2xΦ100×32 | 2xΦ100×32 |
| Sizes of Supporting wheel (diameter X width) | mm | 100×50 | 100×50 |
| Drive wheel/Supporting wheel number (X=Drive wheel) | mm | 2x/2 | 2x/2 |
| Front gauge | mm | 370 | 370 |
| Overall heigh | mm | 1090 | 1090 |
| Height of tiller in drive position | mm | 1010 | 1010 |
| Hook height | mm | 187/247/277/307 | 187/217/247/277/307 |
| Overall length | mm | 1025 | 1025 |
| Overall width | mm | 560 | 610 |
| Ground clearance | mm | 100 | 100 |
| Turning radius | mm | 790 | 800 |
| Drive speed load/unload | Km/h | 3~5 | 3~5 |
| Rated pulling force | N | 500 | 500 |
| Max pulling force | N | 650 | 650 |
| Max grade ability load/unload | % | 5 | 5 |
| Brake type | Electromagnetic | Electromagnetic | |
| Drive motor rating S260min | V/Kw | 1 | 1 |
| Charger(external) | V/A | 29.2/10 | 29.2/10 |
| K20 Battery voltage/nominal capacity | V/Ah | 25.6/36Lithium battery | 25.6/36Lithium battery |
| Battery weight | Kg | 15 | 15 |
| Type of drive control | DC | DC | |
| Steering type | Mechanics | Mechanics | |
| Noise level | dB(A) | <70 | <70 |
| Type of trailer coupling | Latch | Latch |
