Heavy
duty design.
Internal
power pack equipped with relief valve against overloading and compensated flow
valve for controlled lowering speed.
Heavy
duty cylinders with drainage system and check valve to stop the lift table
lowering in case of hose burst.
Suitable
for using in repairing, manufacture, wrapping, assembly line place, etc.
Safety
clearance between scissors to prevent trapping during operation.
Self
lubricating bushings on pivot points.

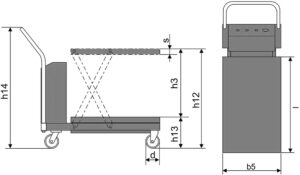

| Model | DPS35 | DPS50 | DPS80 | DPS100 | |
|---|---|---|---|---|---|
| Capacity | kg | 350 | 500 | 800 | 1000 |
| Platform size | mm | 905x500x50 | 905x500x50 | 1200x610x50 | 1200x610x50 |
| Min. Height | mm | 360 | 360 | 500 | 500 |
| Max. Height | mm | 1500 | 1500 | 1700 | 1700 |
| Wheel size | mm | 1250 | 1250 | 150 | 150 |
| Lifting motor power | V/Kw | 12/0.8 | 12/0.8 | 12/0.8 | 12/1.6 |
| Battery | Ah | 60 | 60 | 120 | 120 |
| Weight | kg | 140 | 150 | 290 | 300 |
Suitable for using in repairing, manufacture, wrapping, assembly line place, etc. New hydraulic system increases safety and protects your goods, stepless rate of lowering system remains irrespective of the weight of the load.
The Lift &Tilt Tables are specifically designed to allow an operator to feed and unload parts from tote boxes or containers quickly and easily without lifting, bending, stretching, or reaching. Design with overload protection, safe and reliable.
Self-leveling fully adjustable, weight sensitive. Designed to maintain an ideal working height for assembly lines and loading/unloading operations. Balance to achieved by double springs fitted to the shock absorbers. Simple to operate spring tension adjustment.
