1.The
optimally designed four-wheel structure makes the chassis stable and safe.
2.High-quality
C-shaped gantry alloy steel, the rigidity is 30% higher than that of ordinary
carbon steel.
3.The layout
of all parts and pipelines of the whole vehicle is reasonable, the maintenance
is convenient, and there is no trouble in maintenance of similar vehicles.

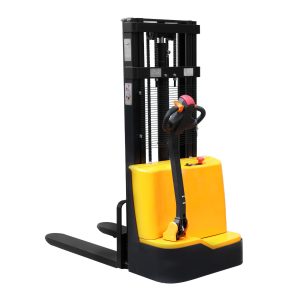

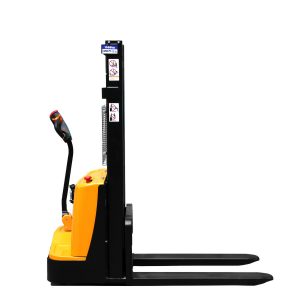

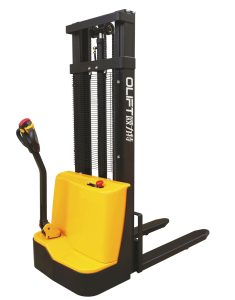

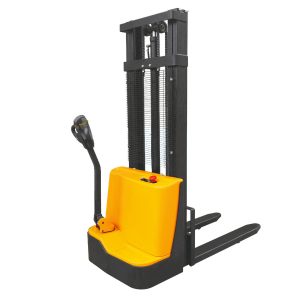

EL-C series
is an economical pallet stacker. It adopts the streamlined industrial design
concept, with smart appearance and small turning radius. It is widely used in
various industries such as warehouses, supermarkets and workshops
Strong power,
load 1 ~ 1.5 tons, to meet the majority of customers handling needs, The
vehicle has regenerative braking and slope protection.
| Model Number | EL10C / EL12C / EL15C | |||
|---|---|---|---|---|
| Drive Type | Electric (Battey operated) | |||
| Operate Type | Pedestrian | |||
| Rated capacity | Q(kg) | 1000 / 1200 / 1500 | ||
| Load center | c(mm) | 500 | ||
| Service weight (with battery) | Kg | 553 | ||
| Wheels | PU | |||
| Lift height | h3(mm) | 1600 / 2500 / 3000 / 3300 / 3500 | ||
| Lowered mast height | h1(mm) | 2080 / 1830 / 2080 / 2230 / 2330 | ||
| Overall height | h4(mm) | 2050 / 2950 / 3450 / 3600 / 3950 | ||
| Min. fork height | h13(mm) | 90 | ||
| Overall length | l1(mm) | 1750 | ||
| Overall width | b1(mm) | 790 | ||
| Forks size | S/e/l(mm) | 60 / 160 / 1070 | ||
| Forks width | b5(mm) | 570 / 685 | ||
| Ground clearance | m2(mm) | 58 | ||
| Aisle Width, with pallet 1000×1200 crosswise | Ast(mm) | 2420 | ||
| Aisle Width, with pallet 800×1200 lengthwise | Ast(mm) | 2350 | ||
| Tumning radius | Wa(mm) | 1390 | ||
| Drive speed, 1aden/unladen | Km/h | 3.5/4 | ||
| Lift speed, laden/unladen | m/s | 3.5 / 4 | ||
| Lower speed, laden/unladen | m/s | 0.1 / 0.2 | ||
| Max. gradient, laden/unladen | % | 3-10% | ||
| Travel brake | Electromagnetic-regenerative braking | |||
| Drive motor power | kW | 0.75 | ||
| Lift motor power | kW | 2 | ||
| Battery voltage/rated capacity | V/Ah | 75/75/120AH | ||
| Noise level at operator’s ear, according to DIN12053 | dB(A) | < 70 |
