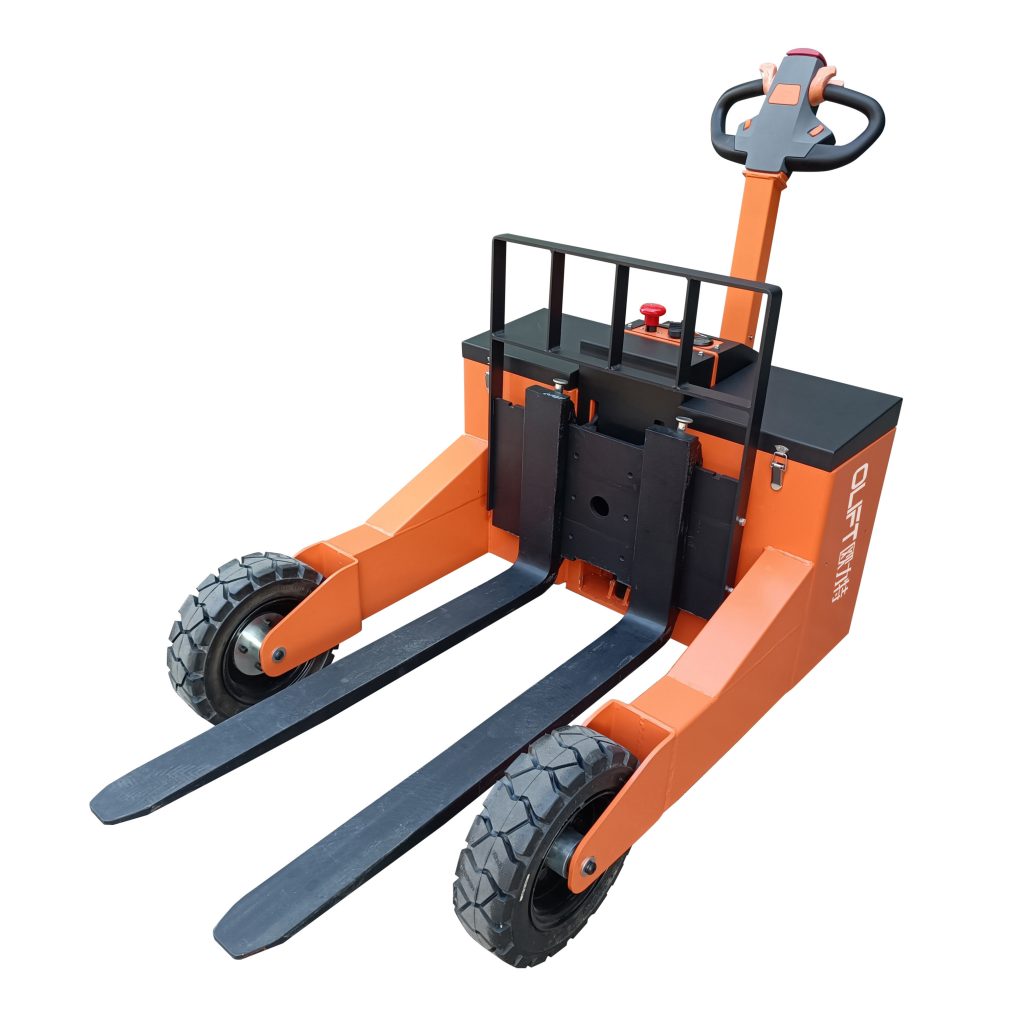

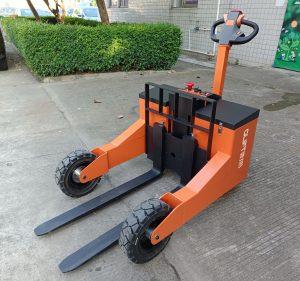

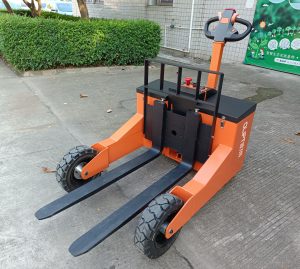

The body of this outdoors pallet truck is made of high-strength steel and has a large carrying capacity. It is suitable for rough terrain on construction sites, docks, etc. The forks are suitable for handling various types of pallets on rough ground.
Due to its rugged construction, durability, light weight and flexibility, it can be loaded by a single person and is suitable for single-person work.
| Characteristic | ||
|---|---|---|
| Model | ML-150NO | |
| Power supply | Electric | |
| Operating type | Tow tugs | |
| Max traction weight | Kg | 1500 |
| Rated pulling force | N | 500 |
| Wheelbase | mm | 1020 |
| Weigh | ||
| Truck weight (with battery) | Kg | 460 |
| Battery weight | Kg | 50 |
| Tyre | ||
| Tire type，Drive wheel/Supporting wheel | Rubber | |
| Sizes of drive wheel(diameter X width) | mm | Φ300×100 |
| Sizes of bearing wheel (diameter X width) | mm | 2xΦ375×105 |
| Drive wheel/Supporting wheel number (X=Drive wheel) | mm | 2x/2 |
| Dimensions | ||
| Overall heigh | mm | 1285 |
| Height of tiller in drive position | mm | 1010 |
| Lifting height | mm | 235 |
| Overall length | mm | 1835 |
| Overall width | mm | 930 |
| Ground clearance | mm | 100 |
| Fork dimensions | mm | 1070 |
| Fork width | mm | 630 |
| Turning radius | mm | 1445 |
| Performance | ||
| Drive speed load/unload | Km/h | 3.5~5.5 |
| Rated pulling force | N | 90/120 |
| Max pulling force | N | 125/80 |
| Max grade ability load/unload | % | 5/8 |
| Brake type | Electromagnetic | |
| Motor | ||
| Drive motor rating | Kw | AC1.5 |
| Lift motor rating | KW | DC0.8 |
| K20 Battery voltage/nominal capacity | V/Ah | 2×12/86 |
| Battery weight | Kg | 50 |
| Others | ||
| Type of drive control | AC | |
| Steering type | Mechanics | |
| Noise level | dB(A) | <70 |
Meet EN1570 norm and ANSI/ASME safety standards (full electric type). Electric lifting, Electric walking. Anti shear clip design is adopted to prevent pinch injury. With overload protection, it is more reliable and safer. Electromagnetic braking is safer.
The Lift &Tilt Tables are specifically designed to allow an operator to feed and unload parts from tote boxes or containers quickly and easily without lifting, bending, stretching, or reaching. Design with overload protection, safe and reliable.
Heavy duty rough terrain lift table ideal for use outside, such as in Garden. Handle with tool box pneumatic tires with brake system. protects your goods, tepless rate of lowering system remains irrespective of the weight of the load.
