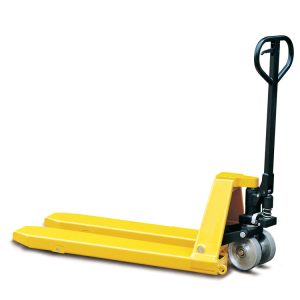

Adhering to the unique curve style of the power storage truck, while displaying the smooth curve of the product, it ensures greater load strength.
Optimized round fork tips ensure easy operation.
50mm fork thickness ensures high capacity.
Curve design on the fork tips help pallets entry in/out.
1.Theload is 5000kg, and the unique hydraulic pump ensures labor-saving and easy lifting of the goods.
2.Reinforced forks ensure product reliability.
3.Capacity 5000 kg
4.Strengthened forks for a reliable quality.

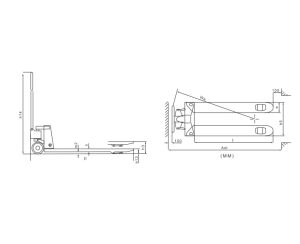

| Model | A500 | |
|---|---|---|
| Load capacity | Q(kg) | 5000 |
| Net weight | kg | 110 |
| Tire size, front | mm | Φ200×50 |
| Tire size, rear | mm | Φ80×80 |
| Lifting height | h3(mm) | 207 |
| Height of tiller in drive position max | h14(mm) | 1235 |
| Lowered height | h13(mm) | 88/77 |
| Fork dimensions | s/e/l | 57/160/1220 (1150) |
| Distance between fork-arms | b5(mm) | 680/550 |
| Turning radius | wa (mm) | 1350 |
| Aisle width for pallets 800×1200 lengthways | Ast(mm) | 1750/1820 |
| Ground clearance, center of wheelbase | m2(mm) | 29/19 |
■The first design of forging & casting integral pump, which prevents any loosening and leakage. ■High-strength alloy steel carefully crafted, increased loading capacity. ■Set the active safety valve to prevent overloading of operation.
The Lift &Tilt Tables are specifically designed to allow an operator to feed and unload parts from tote boxes or containers quickly and easily without lifting, bending, stretching, or reaching. Design with overload protection, safe and reliable.
Heavy duty rough terrain lift table ideal for use outside, such as in Garden. Handle with tool box pneumatic tires with brake system. protects your goods, tepless rate of lowering system remains irrespective of the weight of the load.
