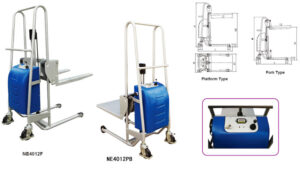

NE series
A range of highly maneuverable, lightweight lifts, designed to take the strain out of any lifting job from ground level to over shoulder height.
Ideal for use in narrow aisles and confined spaces. Perfect for all applications from pharmaceutical to catering, from packing line to food processing , from warehouse to office, kitchens, laboratories, retail outlets etc…
Quick lift pump provides high efficiency.
No-marking castor as standard.
Conforms to EN1757
| Model (Adjustable Fork) | NE4012PA | NE4012PB | NE4012F | |
|---|---|---|---|---|
| Type | Platform | Platform | Adjustable Fork | |
| Capacity | (kg) | 400 | 400 | 400 |
| Max. Fork Height | H2 (mm) | 1210 | 1270 | — |
| Min. Fork Height | H1 (mm) | 90 | 150 | 90 |
| Platform Length | L1 (mm) | 670 | 670 | — |
| Platform Width | W1 (mm) | 590 | 590 | — |
| Fork Height Min. | h1 (mm) | — | — | 90 |
| Fork Height Max. | h2 (mm) | — | — | 1210 |
| Fork Length | L2 (mm) | — | — | 700 |
| Single Fork Width | (mm) | — | — | 90 |
| Fork Width | W2 (mm) | — | — | 190-572 |
| Dia of Front Wheel | D (mm) | Φ75 | Φ75 | Φ75 |
| Dia of Steering Wheel | d (mm) | Φ125 | Φ125 | Φ125 |
| Power Pack Motor | (KW) | 0.8 | 0.8 | 0.8 |
| Battery | (V/Ah) | 12/70 | 12/70 | 12/70 |
| Overall Height | H (mm) | 1610 | 1635 | 1610 |
| Overall Width | W (mm) | 620 | 620 | 620 |
| Overall Length | L (mm) | 1190 | 1190 | 1270 |
| Net Weight | (kg) | 116 | 118 | 117 |
Suitable for printing, paper, textile industry Special design combines lifting, transporting and stacking cylindrical reels. Equipped with a overload protection valve. Design of double chain and big wheels can be stable and reliable.
Compact and service free design. Unique design of winch for easier and safe lifting. Heavy duty “C” section mast. Adjustable fork width from 160mm to 690mm (WS25, WS50). Two parking brakes on steering wheels. Conforms to EN1757-1:2001.
Simple and Easy Operation Lifting Movement via collapsible foot pedal. Overload protection via pressure valve. Safe Operation and secure Working Conditions Stable chassis with 2 frame rollers and 2 steering rollers.
