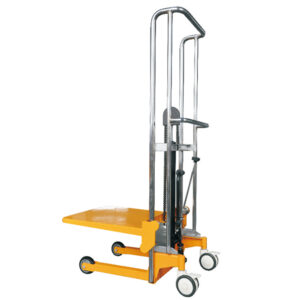

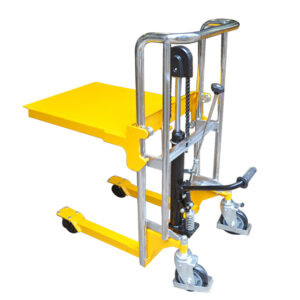

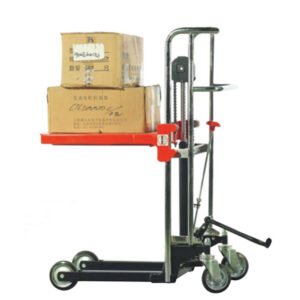

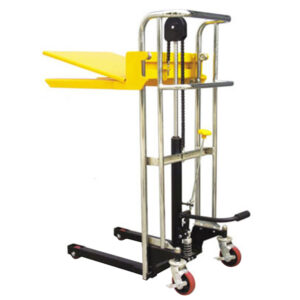

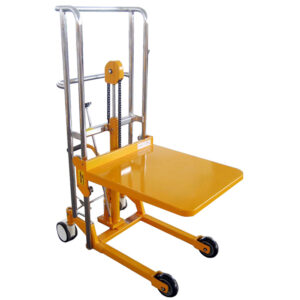

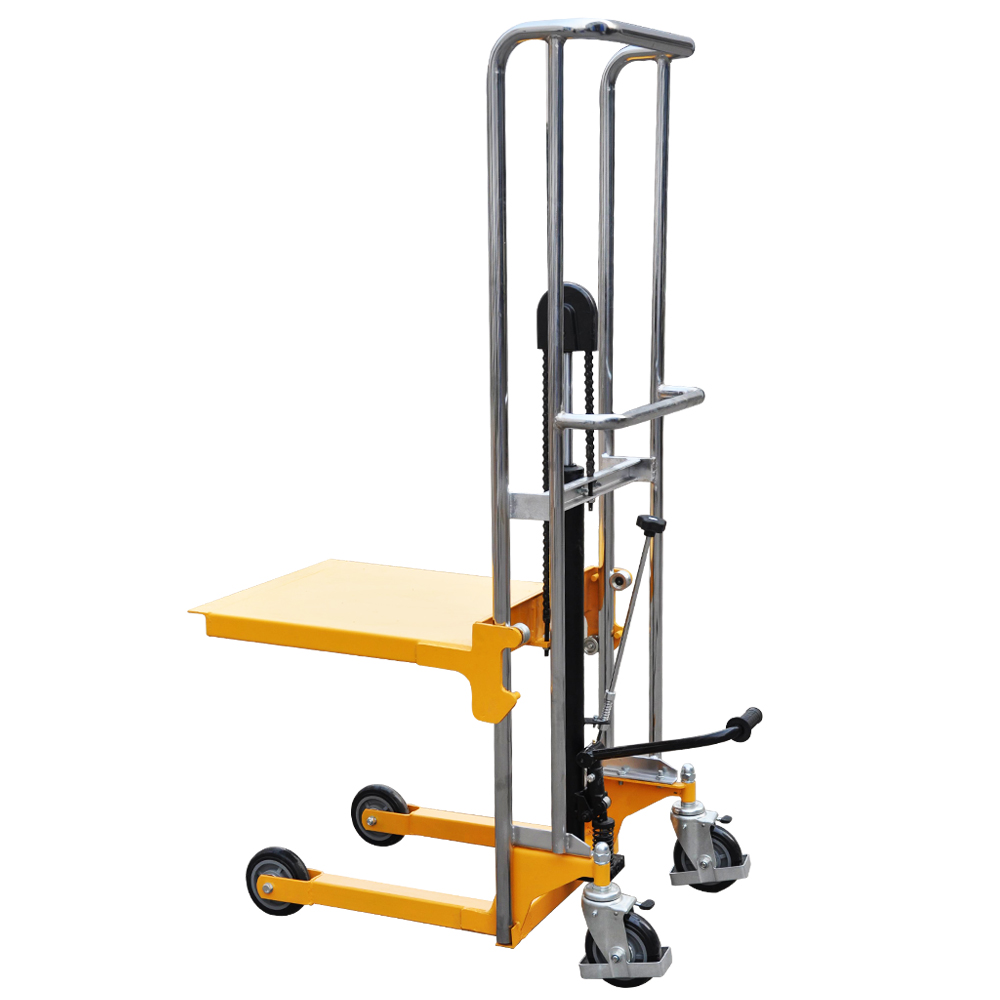

Platform Stacker
Simple and Easy Operation
Lifting Movement via collapsible foot pedal.
Sensitive lowering through sinking valve.
Hand push drive.
Overload protection via pressure valve.
Safe Operation and secure Working Conditions
Stable chassis with 2 frame rollers and 2 steering rollers.
Long Service Lift.
Conforms to EN 1757-1:2001.

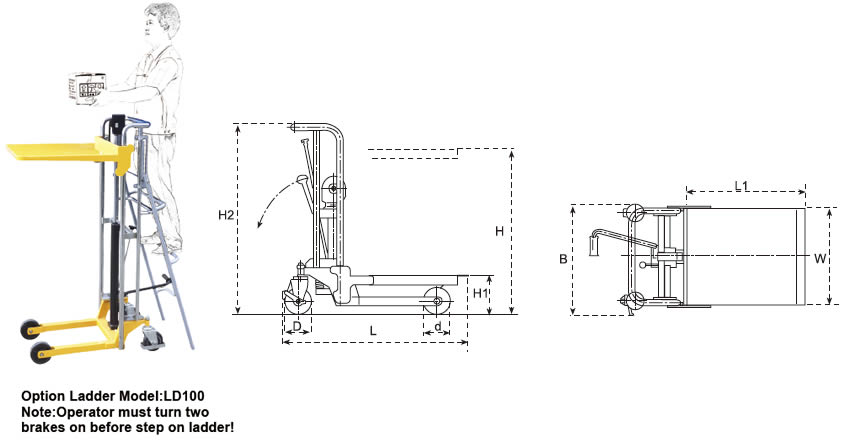

| Model | Platform | PS2085 | PS2120 | PS4085 | PS4120 | PS4150 | PS4180 |
|---|---|---|---|---|---|---|---|
| Low Platform | PS2085L | PS2120L | PS4085L | PS4120L | PS4150L | PS4180L | |
| Capacity | (kg) | 200 | 200 | 400 | 400 | 400 | 200~400 |
| Max. Platform Height | H (mm) | 965 | 1315 | 965 | 1315 | 1615 | 1915 |
| 850 | 1200 | 850 | 1200 | 1500 | 1800 | ||
| Min. Platform Height | H1 (mm) | 200 | 200 | 200 | 200 | 200 | 200 |
| 85(L) | 85(L) | 85(L) | 85(L) | 85(L) | 85(L) | ||
| Platform Length | L1 (mm) | 600 | 600 | 650 | 650 | 650 | 650 |
| Paltform Width | W (mm) | 500 | 500 | 550 | 550 | 550 | 550 |
| Front Load Wheel | D (mm) | Φ125 | Φ125 | Φ150 | Φ150 | Φ150 | Φ150 |
| Φ75(L) | Φ75(L) | Φ75(L) | Φ75(L) | Φ75(L) | Φ75(L) | ||
| Rear Steering Wheel | d (mm) | Φ125 | Φ125 | Φ150 | Φ150 | Φ150 | Φ150 |
| Φ125(L) | Φ125(L) | Φ125(L) | Φ125(L) | Φ125(L) | Φ125(L) | ||
| Pump Strokes to Max. Height | 14 | 21 | 30 | 45 | 58 | 71 | |
| Net Weight(PS/EP) | (kg) | 46 | 51 | 64 | 70 | 75 | 85 |
| Noise-free Castor | O | O | O | O | O | O | |
| Ovrall Size | LxWxH (mm) | 940x520x960 | 940x520x1310 | 1040x570x1090 | 1040x570x1440 | 1040x570x1740 | 1040x570x1940 |

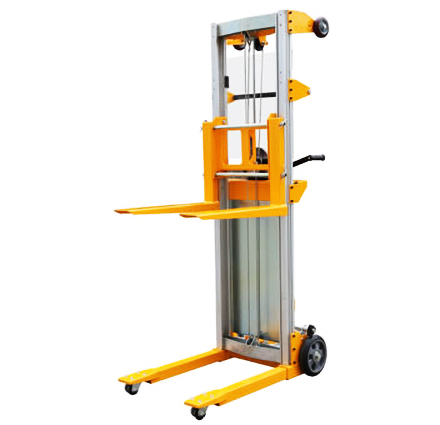

Disassembling and assembling is easy. Can fit into smaller spaces when disassembled. Equipped with wheels on the mast also allow it to be used as a trolley. Light Aluminum mast, easy for handling. erated by winch.

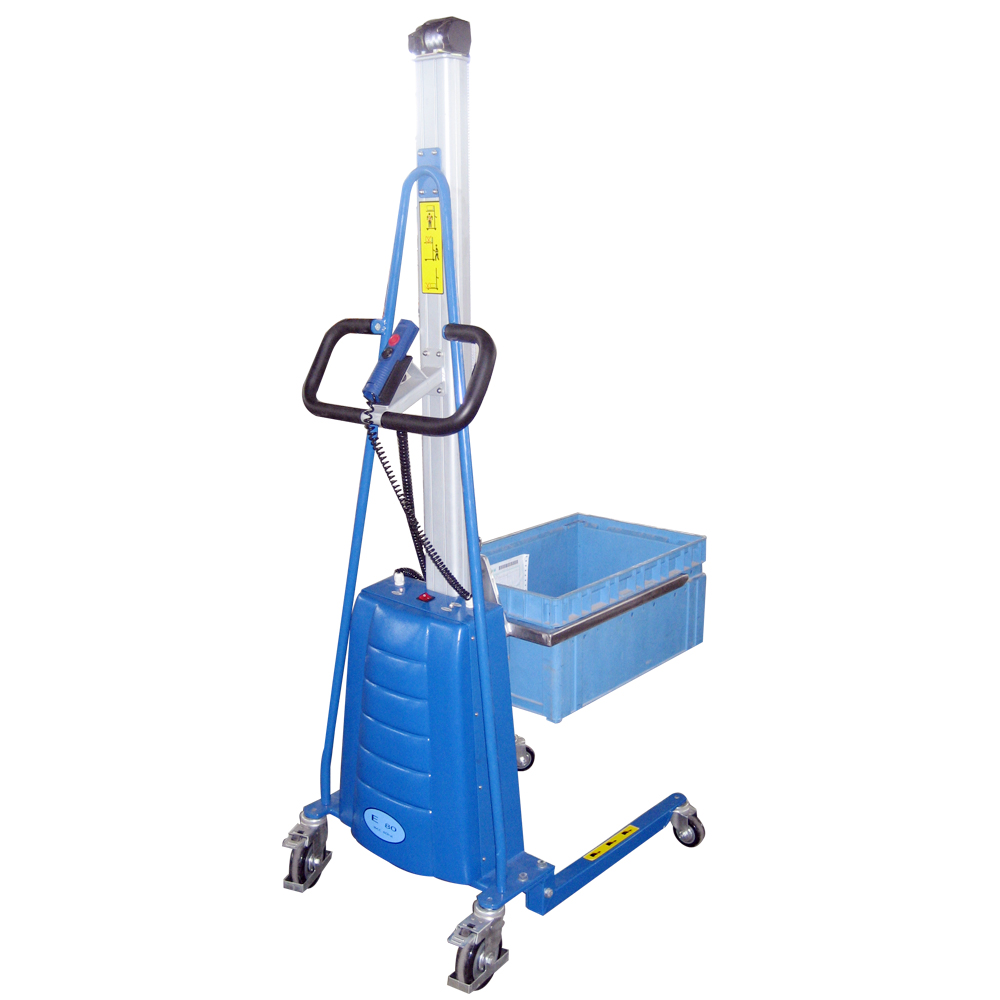

EP•A series Easier and faster lifting operation. High quality hydraulic motor made in Italy. Service free battery. No-marking castor as standard. Conforms to 1757-1 : 2001.
• Stronger motor, Larger battery 12Ah, Low voltage protection. • Electric models: Automatic electronic overload protection system ensures safety. Maintenance free and sealed batteries, automatic charger. • Quick change attachment options available.
