Suitable
for printing, paper, textile industry

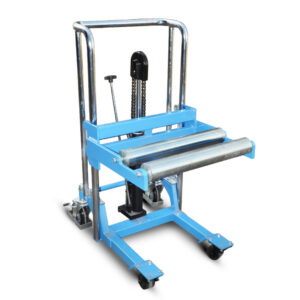

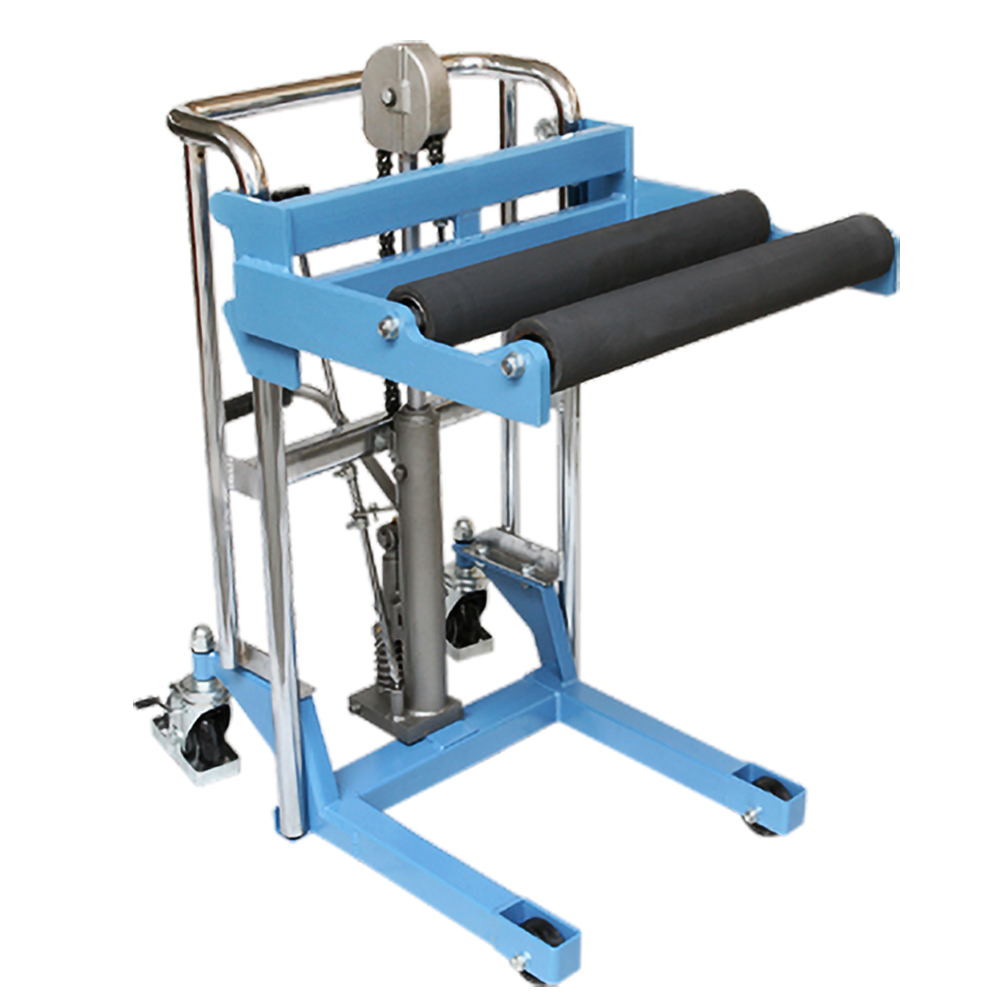

Roller
length could be OEM, max is 800mm

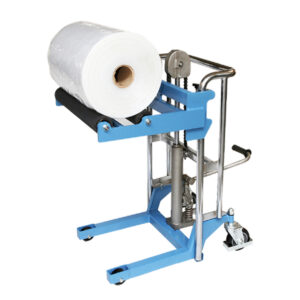

Special
design combines lifting, transporting and stacking cylindrical reels.
Equipped
with a overload protection valve.
Hard
chromium plated frame.
Widely
used with low platform and various accessories as option.
Design
of double chain and big wheels can be stable and reliable.
Conforms
to EN 1757-1.
| Model Fixed front Wheel | PFG2085 | PFG2120 | PFG4085 | PFG4120 | PFG4150 | |
|---|---|---|---|---|---|---|
| Universal front Wheel | PFG2085W | PFG2120W | PFG4085W | PFG4120W | PFG4150W | |
| Capacity | (kg) | 200 | 200 | 400 | 400 | 400 |
| Max. Roller Height | (mm) | 870 | 1200 | 870 | 1200 | 1500 |
| Min. Roller Height | (mm) | 180/200 | 180/200 | 180/200 | 180/200 | 180/200 |
| Out trigger Height | (mm) | 80/100W | 80/110W | 80/120W | 80/120W | 80/120W |
| Max. Diameter of reel | (mm) | Φ100-300 | Φ100-300 | Φ200-600 | Φ200-600 | Φ200-600 |
| Roller Size | (mm) | Φ76×500 | Φ76×500 | Φ76×550 | Φ76×550 | Φ76×550 |
| Roller Length | (mm) | 500-800 | 500-800 | 550-800 | 550-800 | 550-800 |
| Roller Center | (mm) | 120 | 120 | 180/240 | 180/240 | 180/240 |
| Roller Material | (mm) | Rubber(PU, | Galvanized Steel, | Stainless Steel) | ||
| Front Wheel | (mm) | Φ75 | Φ75 | Φ75 | Φ75 | Φ75 |
| Rear Steering Wheel | (mm) | Φ125 | Φ125 | Φ150 | Φ150 | Φ150 |
| Pump Strokes to Max. Height | 14 | 21 | 30 | 45 | 58 | |
| Noise-free Castor | O | O | O | O | O | |
| Overall Dimension | (mm) | 680×580×1030 | 680×580×1380 | 780×630×1070 | 780×630×1420 | 780×630×1720 |
| Net Weight | (kg) | 46 | 51 | 64 | 70 | 75 |
Disassembling and assembling is easy. Can fit into smaller spaces when disassembled. Equipped with wheels on the mast also allow it to be used as a trolley. Light Aluminum mast, easy for handling. erated by winch.
EP•A series Easier and faster lifting operation. High quality hydraulic motor made in Italy. Service free battery. No-marking castor as standard. Conforms to 1757-1 : 2001.
• Stronger motor, Larger battery 12Ah, Low voltage protection. • Electric models: Automatic electronic overload protection system ensures safety. Maintenance free and sealed batteries, automatic charger. • Quick change attachment options available.
