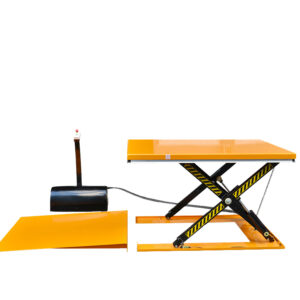

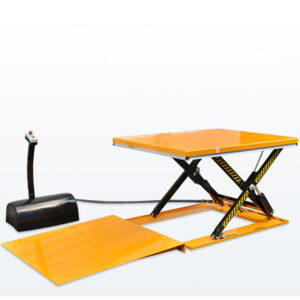

Hydraulic
lifting system, the far-end control and multi-control points at the different
floors could be realized hierarchical control. Stop anywhere at the

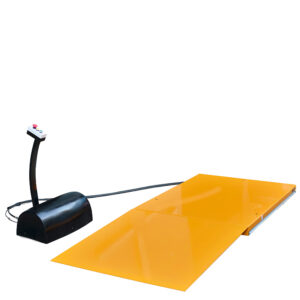

pre-concerted and accurate location point. low position lift table It can work
under any condition, great load capacity, safe and reliable. There are
sensitive overload protection devices locking device for falling protection.
Heavy
duty design with larger platform.
They
are manufactured to all European safety standards including EN1570:1999.
Remote
power pack with pedestal and controls, pretected to IP54.

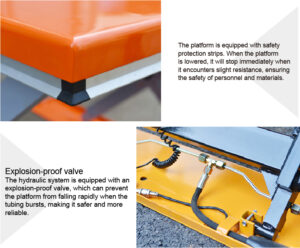

Upper
platform fitted wity safety perimeter to prevent descent on contact with
obstructions.

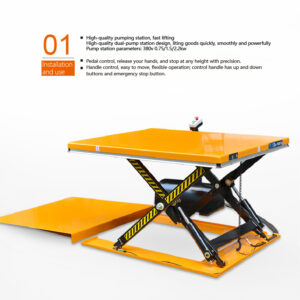

24V
control box with UP and DOWN buttons and emergency stop.
External
power pack equipped with a relief valve against overloading and a compensated
flow valve for controlling lowering speed. Power supply are AC 380V/50Hz/3
phase.
| Model No. | Capacity (kg) | Platform Size LXW(mm) | Base frame size （mm） | Min. Height (mm) | Max. Height (mm) | Lifting Time (second) | Power pack | Net weight(kg) |
|---|---|---|---|---|---|---|---|---|
| HY1001 | 1000 | 1450×1140 | 1325×1074 | 85 | 860 | 25 | 380V/50Hz, AC0.75kw | 357 |
| HY1002 | 1000 | 1600×1140 | 1325×1074 | 85 | 860 | 25 | 380V/50Hz, AC0.75kw | 364 |
| HY1003 | 1000 | 1450×800 | 1325×734 | 85 | 860 | 25 | 380V/50Hz, AC0.75kw | 326 |
| HY1004 | 1000 | 1600×800 | 1325×734 | 85 | 860 | 25 | 380V/50Hz, AC0.75kw | 332 |
| HY1005 | 1000 | 1600×1000 | 1325×734 | 85 | 860 | 25 | 380V/50Hz, AC0.75kw | 352 |
| HY1501 | 1500 | 1600×800 | 1325×734 | 105 | 870 | 30 | 380V/50Hz, AC2.2kw | 302 |
| HY1502 | 1500 | 1600×1000 | 1325×734 | 105 | 870 | 30 | 380V/50Hz, AC2.2kw | 401 |
| HY1503 | 1500 | 1600×1200 | 1325×734 | 105 | 870 | 30 | 380V/50Hz, AC2.2kw | 415 |
| HY2001 | 2000 | 1600×1200 | 1427×1114 | 105 | 870 | 35 | 380V/50Hz, AC2.2kw | 419 |
| HY2002 | 2000 | 1600×1000 | 1427×734 | 105 | 870 | 35 | 380V/50Hz, AC2.2kw | 405 |
