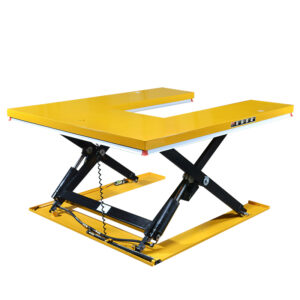

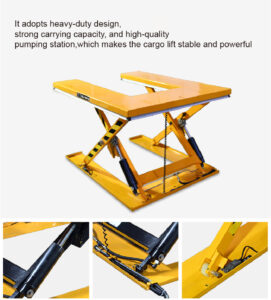

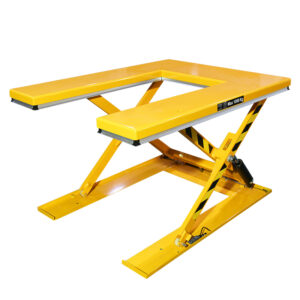

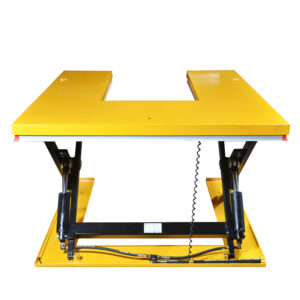

1. “U” shaped table are
specially for handling pallets, no need for a pit or load.
2. They are manufactured to all European safety standards including
EN1570:1999.

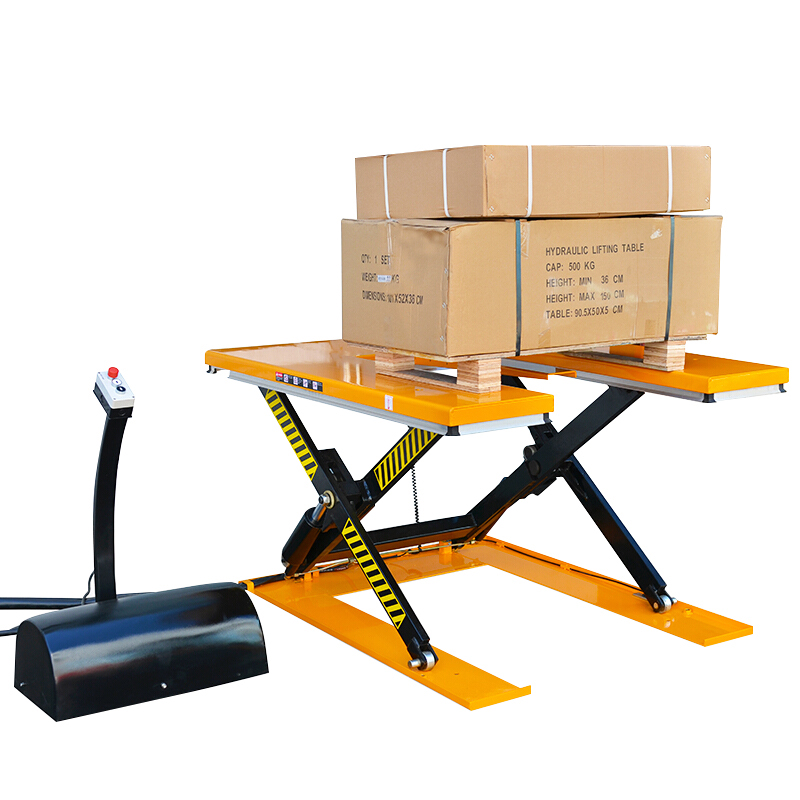

3. Remote power pack with pedestal and controls, protected to IP54.

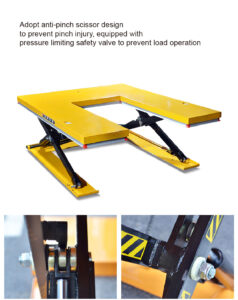

4. Upper platform fitted with safety perimeter to prevent descent on contact
with obstructions.
5. Control box with UP and DOWN buttons and emergency stop.
6. External power pack equipped with a relief valve against overloading and a
compensated flow valve for controlling lowering speed.
7. Hose burst safety valve to stop the lift table lowering in case of hose
breakage.
8. Removable lifting eyes to facilitate handling and installation of the lift
table.
9. Oilless bushings on pivot points.
10. Quick assembly joint for oil hose.
| Model Number | HU600 | HU1000 | HU1500 | HU2000 | |
|---|---|---|---|---|---|
| Capacity | kg | 600 | 1000 | 1500 | 2000 |
| Platform size (L*W) | mm | 1450X985 | 1450X1140 | 1600X1180 | 1600X1180 |
| Size A | mm | 200 | 280 | 300 | 300 |
| Size B | mm | 1080 | 1080 | 1194 | 1194 |
| Size C | mm | 585 | 580 | 580 | 580 |
| Min. Platform height-h | mm | 85 | 85 | 105 | 105 |
| Max. Platform height-h1 | mm | 860 | 860 | 860 | 860 |
| Lifting time | S | 25~35 | 25~35 | 30~40 | 30~40 |
| Hydraulic power station | V/KW | 380/0.75 | 380/0.75 | 380/1.5 | 380/2.2 |
| Net weight | kg | 208 | 280 | 380 | 415 |
*Small platform for special size material. *High quality norm power pack from Europe for stable and safe lifting. *Upper platform fitted with aluminium safety bar preventing descent on contact with obstructions
Hydraulic lifting system, the far-end control and multi-control points at the different floors could be realized hierarchical control. Stop anywhere at the pre-concerted and accurate location point.
Self-leveling fully adjustable, weight sensitive. Designed to maintain an ideal working height for assembly lines and loading/unloading operations. Balance to achieved by double springs fitted to the shock absorbers. Simple to operate spring tension adjustment.
