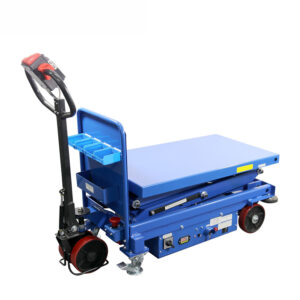

OLIFT ESS series full-electric mobile scissor lift tables combine powered lifting with electric travel for moving loads between workstations. ESS50 models handle up to 500 kg; ESS80 models handle up to 800 kg. Each uses a 1,020 × 610 mm platform.

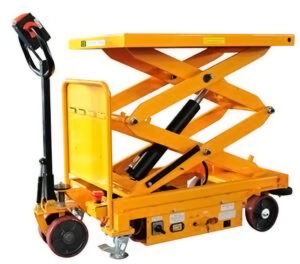

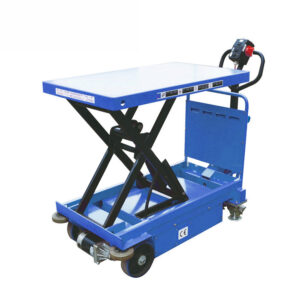

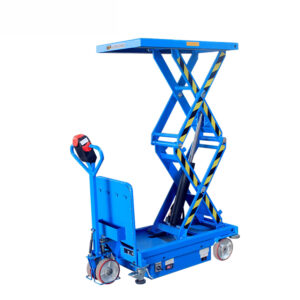

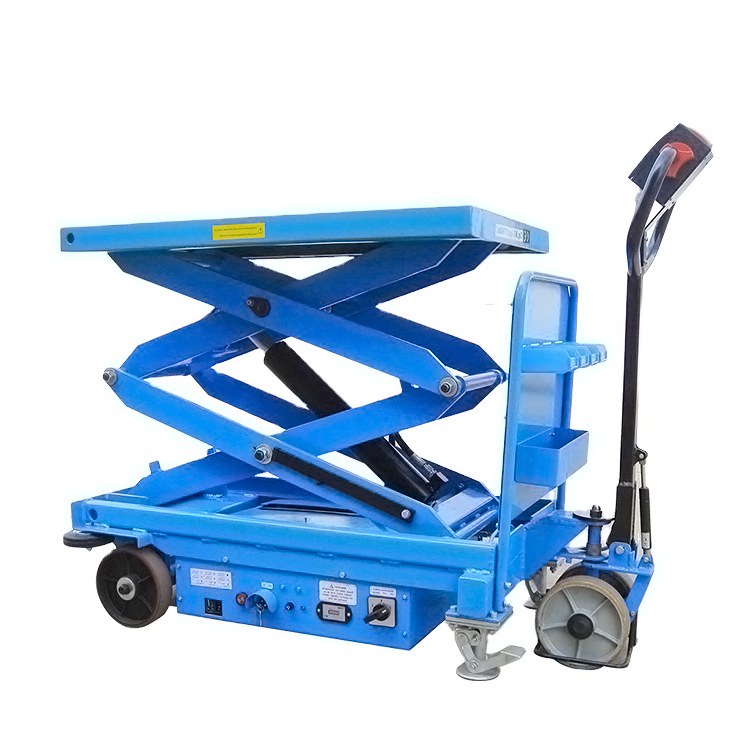

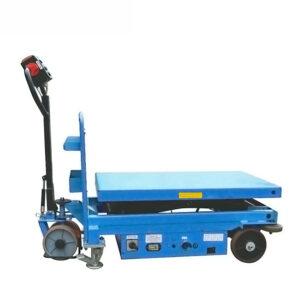

Choose single- or double-scissor configurations. Depending on the model, minimum table height is 460–520 mm and maximum height is 990–1,850 mm. All models list a 24 V/70 Ah battery, 500 W drive motor and 800 W pump motor.
Safety features include anti-shear protection, overload protection and electromagnetic braking. Compare model-specific lift heights and vehicle weights in the table below.
| Model | ESS50 | ESS50D | ESS80 | ESS80D | |
|---|---|---|---|---|---|
| Types | Single scissor | Double scissor | Single scissor | Double scissor | |
| Rated load | kg | 500 | 500 | 800 | 800 |
| Table length | mm | 1020 | 1020 | 1020 | 1020 |
| Table width | mm | 610 | 610 | 610 | 610 |
| Minimum height of table | mm | 460 | 465 | 460 | 520 |
| The highest height of the table | mm | 990 | 1700 | 1050 | 1850 |
| Total handle height | mm | 1165 | 1165 | 1165 | 1165 |
| Vehicle length | mm | 1380 | 1380 | 1380 | 1380 |
| Overall width of outer wheel | mm | 667 | 667 | 667 | 667 |
| Weight | kg | 203 | 250 | 241 | 293 |
| Battery parameters | 24V/70Ah | 24V/70Ah | 24V/70Ah | 24V/70Ah | |
| Motor power (driving wheel) | w | 500 | 500 | 500 | 500 |
| Motor power (pump station) | w | 800 | 800 | 800 | 800 |
Suitable for using in repairing, manufacture, wrapping, assembly line place, etc. New hydraulic system increases safety and protects your goods, stepless rate of lowering system remains irrespective of the weight of the load.
The Lift &Tilt Tables are specifically designed to allow an operator to feed and unload parts from tote boxes or containers quickly and easily without lifting, bending, stretching, or reaching. Design with overload protection, safe and reliable.
Self-leveling fully adjustable, weight sensitive. Designed to maintain an ideal working height for assembly lines and loading/unloading operations. Balance to achieved by double springs fitted to the shock absorbers. Simple to operate spring tension adjustment.
