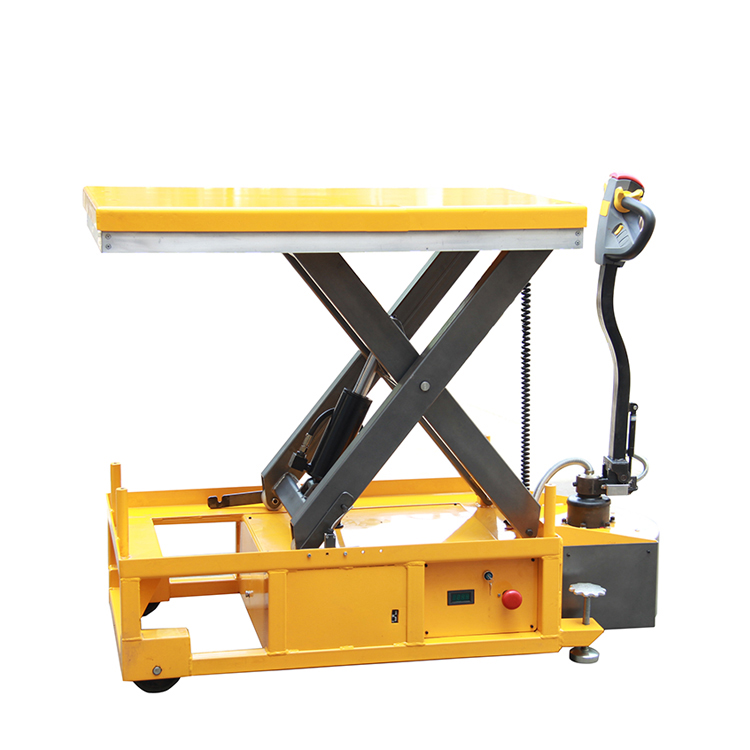

The OLIFT YLF120 mobile electric scissor lift table handles loads up to 1,200 kg on a 1,300 × 820 mm platform. It raises loads from 540 mm to 1,300 mm using a single-scissor electric lift powered by a 2.2 kW lifting motor; electric travel uses a 1.2 kW drive motor and magnetic braking. A 24 V/120 Ah battery powers the unit, which has a 1,500 mm turning radius. Safety features include overload and anti-pinch protection, an aluminum safety bar, and a hose-burst valve. The built-in charger is standard; an external charger is optional.
| Model | YLF120 | |
|---|---|---|
| Driving type | / | Electric |
| Type | / | Single scissor |
| Capacity | kg | 1200 |
| Turning radius | mm | 1500 |
| Driving wheel material | / | PU |
| Driving wheel size | mm | 250*80 |
| Grade ability (laden/unladen) | % | 3/5° |
| Brake type | / | Electric magnetic |
| Drive motor power | Kw | 1.2 |
| Lifting motor power | Kw | 2.2 |
| Battery | V/Ah | 24/120 |

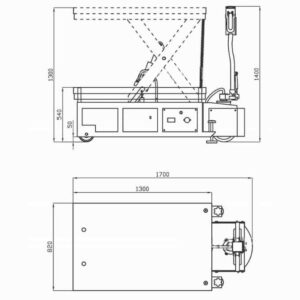

| Platform size | mm | 1300*820 |
| Min. height | mm | 540 |
| Max. height | mm | 1300 |
| Net weight | kg | 426 |
Meet EN1570 norm and ANSI/ASME safety standards (full electric type). Electric lifting, Electric walking. Anti shear clip design is adopted to prevent pinch injury. With overload protection, it is more reliable and safer. Electromagnetic braking is safer.
The low profile electric / hydraulic scissor lift table heavy duty design. Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed. Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.
Heavy duty rough terrain lift table ideal for use outside, such as in Garden. Handle with tool box pneumatic tires with brake system. protects your goods, tepless rate of lowering system remains irrespective of the weight of the load.
