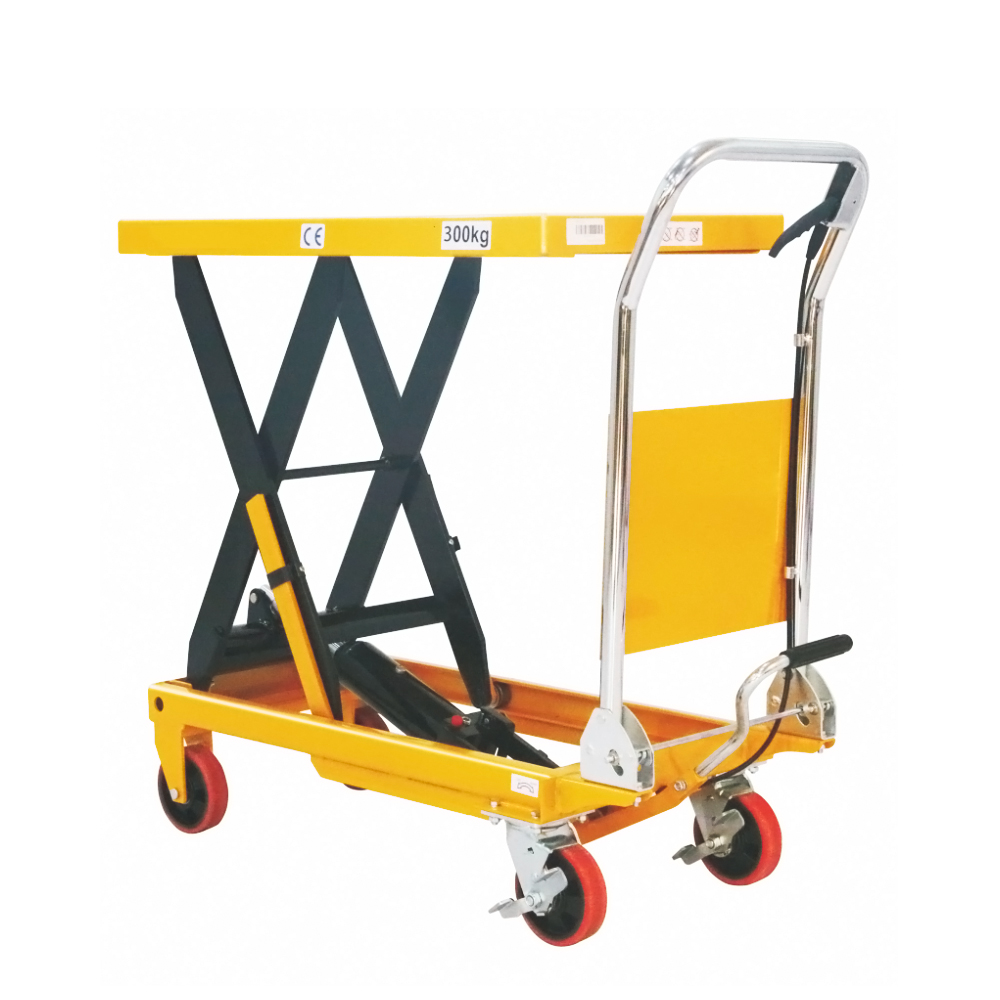

OLIFT BS-series hydraulic lift tables support workstation loading, assembly, packaging and material positioning. Single-scissor BS15–BS100 models handle 150–1,000 kg; double-scissor BS15D–BS80D models handle 150–800 kg.
Lift heights reach 1,585 mm, and platform sizes vary by model from 700 × 450 mm to 1,010 × 520 mm. The series includes overload protection and controlled lowering. Compare the specifications below, then match rated capacity, platform size and raised height to your load.

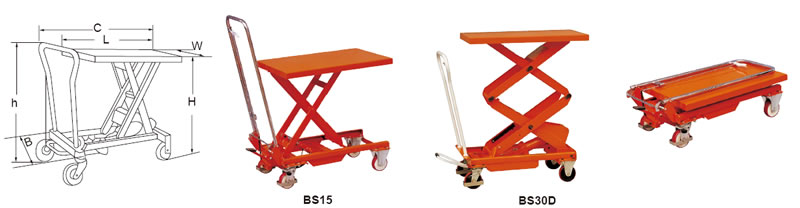

| Model | BS15 | BS25 | BS50 | BS75 | BS100 | BS15D | BS30D | BS50D | BS80D | |
|---|---|---|---|---|---|---|---|---|---|---|
| Type | Single scissor | Single scissor | Single scissor | Single scissor | Single scissor | Double scissor | Double scissor | Double scissor | Double scissor | |
| Capacity | (kg) | 150 | 250 | 500 | 750 | 1000 | 150 | 300 | 500 | 800 |
| Table Size | LxW (mm) | 700×450 | 830×500 | 1010×520 | 1010×520 | 1010×520 | 830×500 | 1010×520 | 1010×520 | 1010×520 |
| Table Height | Min./Max.(mm) | 265/755 | 330/910 | 435/1000 | 442/1000 | 445/950 | 435/1430 | 435/1585 | 440/1575 | 470/1410 |
| Handle Height | h (mm) | 1000 | 1100 | 1130 | 1130 | 1130 | 1100 | 1130 | 1130 | 1130 |
| Wheel Dia. | (mm) | Φ100 *30 | Φ125*30 | Φ150*40 | Φ150*40 | Φ150*40 | Φ125*30 | Φ150*40 | Φ150*40 | Φ150*40 |
| Overall Size | BxC (mm) | 450×950 | 500×1010 | 520×1185 | 520×1260 | 520×1260 | 500×1010 | 520×1260 | 520×1260 | 520×1260 |
| Foot Pedal | ≤ 20 | ≤ 28 | ≤55 | ≤65 | ≤85 | ≤30 | ≤75 | ≤85 | ≤95 | |
| Net Weight | (kg) | 41 | 78 | 118 | 120 | 137 | 90 | 150 | 168 | 165 |
More easier for loading and unloading operations by means of ball transfer unit. As the steel balls are raised, the goods on table are very easy to move into or move away. As the steel balls are lowered, the goods stay on table firmly.
Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed. Suitable for using in repairing, manufacture, wrapping, assembly line place, etc.
Step-less speed regulator and integrated hydraulic pump stations to ensure a smooth lifting powerful and high power drive. Heavy duty cylinders with drainage system and anti-exploded valve to stop the lift table lowering in case of hose burst. With anti-pinch and overload protection function.
