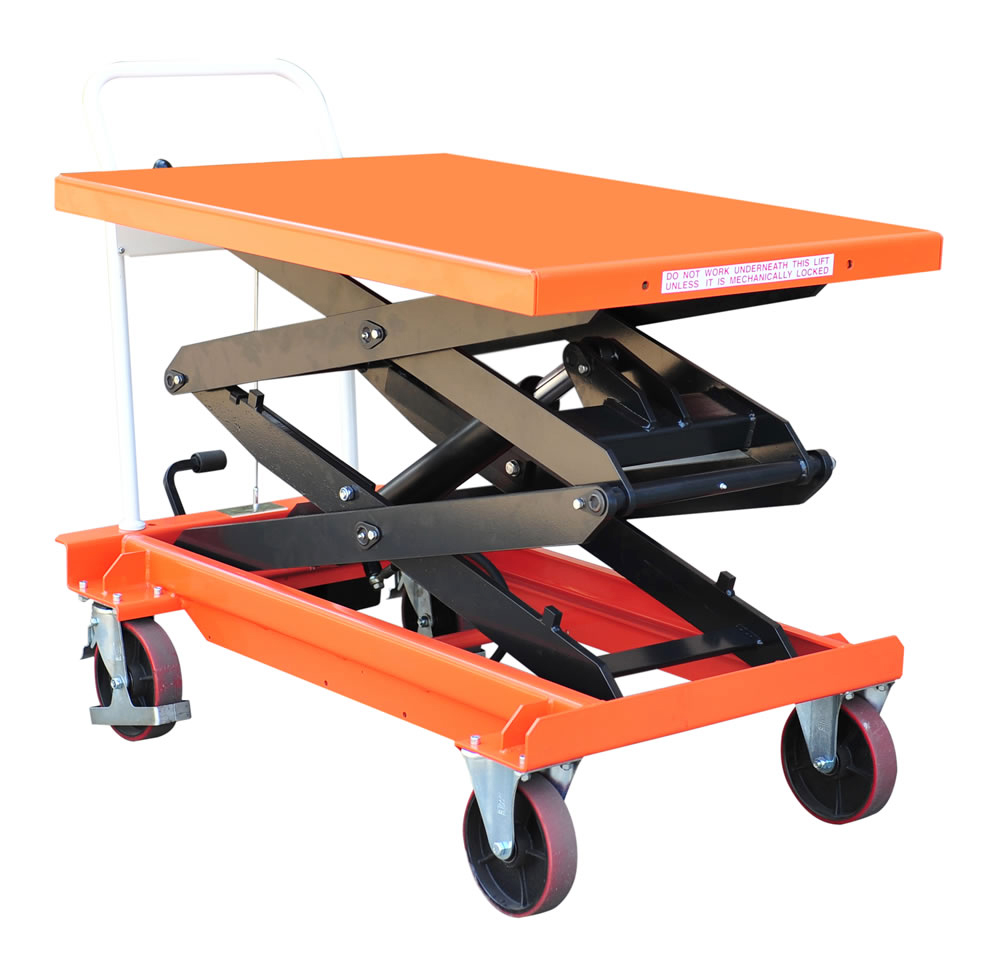

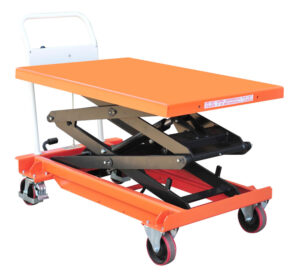

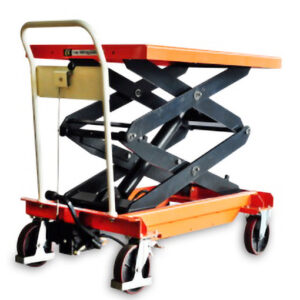

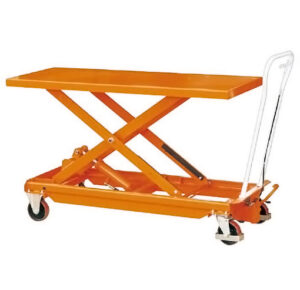

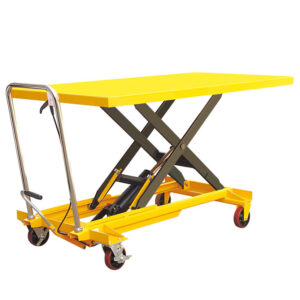

OLIFT BS.L manual hydraulic lift tables use a foot pedal to raise the platform and a hand release for controlled lowering. Five models are rated for 500 or 1,000 kg. The BS50LA has a 1,525 × 620 mm platform, while the other four models have a 1,200 × 800 mm platform.
Maximum platform heights range from 1,100 to 2,000 mm by model. The BS50LD and BS100LD both reach 2,000 mm, with rated capacities of 500 and 1,000 kg respectively. Compare the lowered height, platform dimensions and rated capacity in the table below. The design includes caster guards and a hydraulic overload bypass valve.

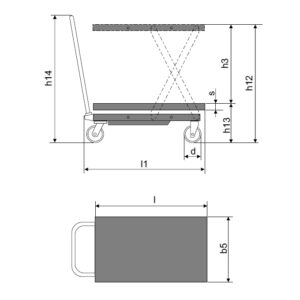

| Model | BS50LA | BS50LB | BS100L | BS50LD | BS100LD | |
|---|---|---|---|---|---|---|
| Type | Single scissor | Single scissor | Single scissor | Double scissor | Double scissor | |
| Capacity | (kg) | 500 | 500 | 1000 | 500 | 1000 |
| Min.Height | (mm) | 400 | 370 | 425 | 470 | 570 |
| Max. Height | (mm) | 1100 | 1230 | 1225 | 2000 | 2000 |
| Table Size | (mm) | 1525×620 | 1200×800 | 1200×800 | 1200×800 | 1200×800 |
| Over size | (mm) | 1760 x620 | 1430*800 | 1430*800 | 1430*800 | 1430*800 |
| Wheel | (mm) | Φ150 | Φ150 | Φ150 | Φ160 | Φ200 |
| Foot pedal | 55 | 75 | 95 | 179 | 255 | |
| Net Wright | (kg) | 175 | 160 | 163 | 222 | 242 |
Suitable for using in repairing, manufacture, wrapping, assembly line place, etc. New hydraulic system increases safety and protects your goods, stepless rate of lowering system remains irrespective of the weight of the load.
The Lift &Tilt Tables are specifically designed to allow an operator to feed and unload parts from tote boxes or containers quickly and easily without lifting, bending, stretching, or reaching. Design with overload protection, safe and reliable.
Self-leveling fully adjustable, weight sensitive. Designed to maintain an ideal working height for assembly lines and loading/unloading operations. Balance to achieved by double springs fitted to the shock absorbers. Simple to operate spring tension adjustment.
