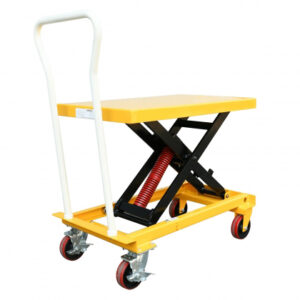

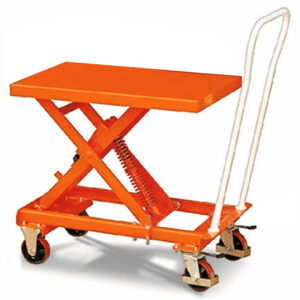

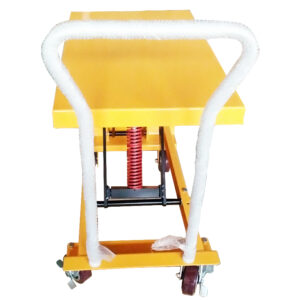

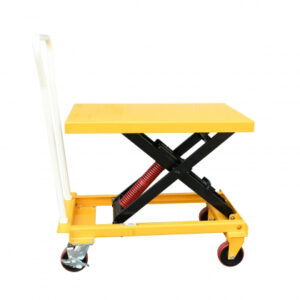

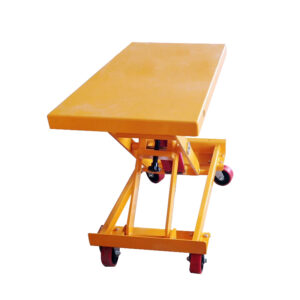

OLIFT BC21 and BC40 self-leveling spring lift tables help maintain a practical working height as load weight changes. Their spring mechanism is adjusted for the load range, supporting assembly, loading and unloading tasks.
Compare the 210 kg BC21 (80–210 kg working range, 830 × 500 mm platform) with the 400 kg BC40 (100–400 kg range, 1,010 × 520 mm platform) to match the table to the load and workspace.
| Model | BC21 | BC40 | |
|---|---|---|---|
| Capacity | (kg) | 210 | 400 |
| Loading Range | (kg) | 80-210 | 100-400 |
| Table Size | LxW (mm) | 830×500 | 1010×520 |
| Table Height | Min/Max(mm) | 360/770 | 440/800 |
| Handle Height | (mm) | 1100 | 1100 |
| Wheel Dimeter | (mm) | Φ125*30 | Φ12*30 |
| Overall Size | (mm) | 1065x500x1100 | 1200x500x1100 |
| Net Wright | (kg) | 75 | 123 |
More easier for loading and unloading operations by means of ball transfer unit. As the steel balls are raised, the goods on table are very easy to move into or move away. As the steel balls are lowered, the goods stay on table firmly.
Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed. Suitable for using in repairing, manufacture, wrapping, assembly line place, etc.
Step-less speed regulator and integrated hydraulic pump stations to ensure a smooth lifting powerful and high power drive. Heavy duty cylinders with drainage system and anti-exploded valve to stop the lift table lowering in case of hose burst. With anti-pinch and overload protection function.
