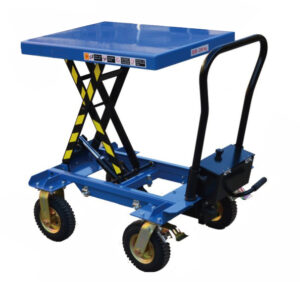

Compare OLIFT HMB rough-terrain lift tables for outdoor load positioning. Six models cover 200–700 kg capacities, with single- and double-scissor configurations.
Standard platform sizes range from 700 × 520 mm to 1,220 × 610 mm; optional platforms are available on selected models.
Model-specific lift ranges extend from a 345 mm minimum height to a 1,700 mm maximum height. Pneumatic tires and a brake system support outdoor use.
Compare each model’s dimensions, foot-pedal count and capacity in the specification table.
| Model | HMB200 | HMB300 | HMB500 | HMB750 | HMB501 | HMB300D | |
|---|---|---|---|---|---|---|---|

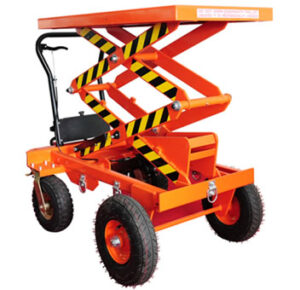

| Type | Single Scissor | Single Scissor | Single Scissor | Single Scissor | Single Scissor | Double Scissor | |
| Capacity | (kg) | 200 | 300 | 500 | 700 | 500 | 300 |
| Table Height | (mm) | 380/870 | 410/1000 | 545/1110 | 545/1110 | 345/1180 | 545/1700 |
| Table Height with Option Platform | (mm) | 458/948 | 488/1078 | 630/1195 | 630/1195 | 423/1258 | 630/1785 |
| Handle Height | (mm) | 910 | 975 | 975 | 975 | 975 | 975 |
| Table Size | (mm) | 700×520 | 850×520 | 1010×520 | 1010×520 | 1220×610 | 1010×520 |

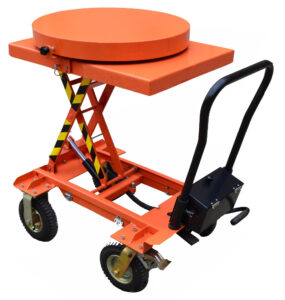

| Option Platform Size | (mm) | Φ600 | Φ600 | 710×500 | 710×500 | Φ600 | 710×500 |
| Overall Size | (mm) | 922×690×910 | 1065×690×975 | 1200×720×975 | 1270×720×975 | 1583×800×975 | 1270×720×975 |
| Front Pneumatic Tires | (mm) | Φ200 | Φ200 | Φ330 | Φ330 | Φ300 | Φ330 |
| Real Pneumatic Tires | (mm) | Φ200 | Φ200 | Φ250 | Φ250 | Φ200 | Φ250 |
| Foot Pedal | (times) | 16 | 20 | 30 | 40 | 35/70 | 40 |
| Net Weight w/o Option Platform | (kg) | 60 | 85 | 126 | 130 | 175 | 145 |
| Net Weight of Option Platform | (kg) | 24 | 24 | 40 | 40 | 24 | 40 |

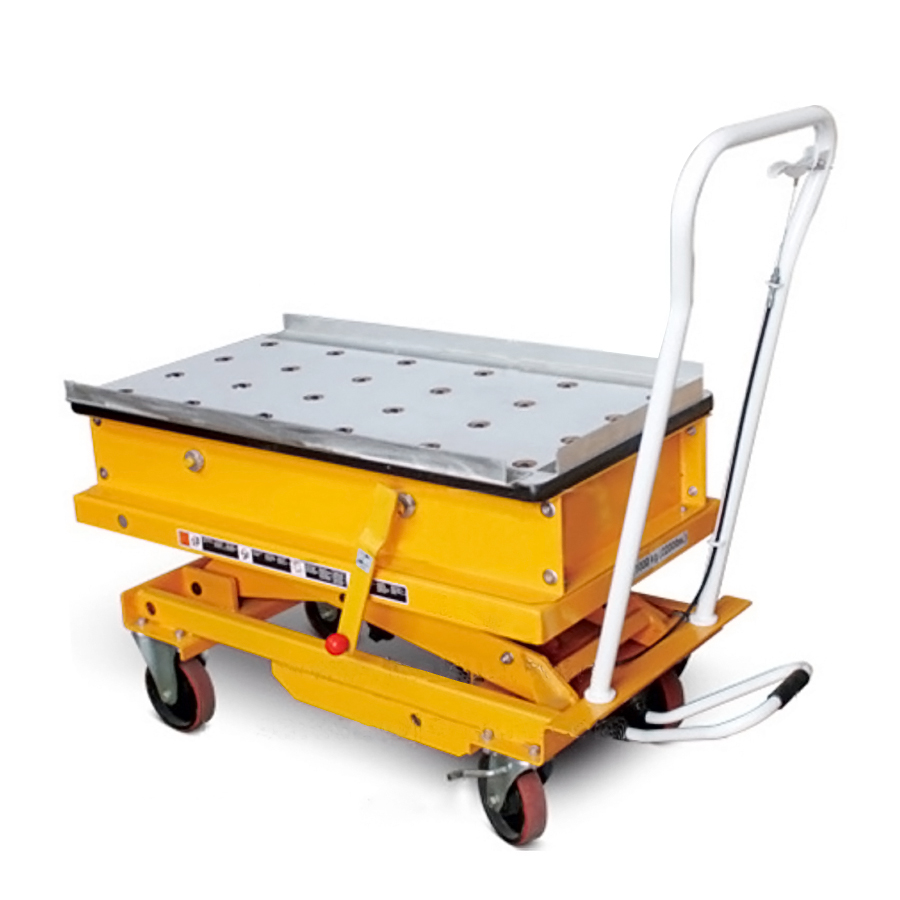

More easier for loading and unloading operations by means of ball transfer unit. As the steel balls are raised, the goods on table are very easy to move into or move away. As the steel balls are lowered, the goods stay on table firmly.
The Lift &Tilt Tables are specifically designed to allow an operator to feed and unload parts from tote boxes or containers quickly and easily without lifting, bending, stretching, or reaching. Design with overload protection, safe and reliable.
Self-leveling fully adjustable, weight sensitive. Designed to maintain an ideal working height for assembly lines and loading/unloading operations. Balance to achieved by double springs fitted to the shock absorbers. Simple to operate spring tension adjustment.
