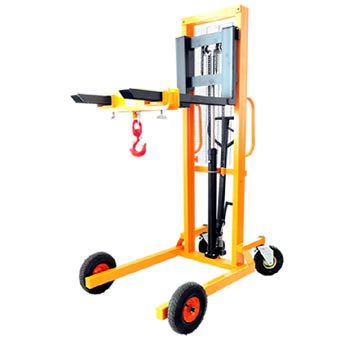

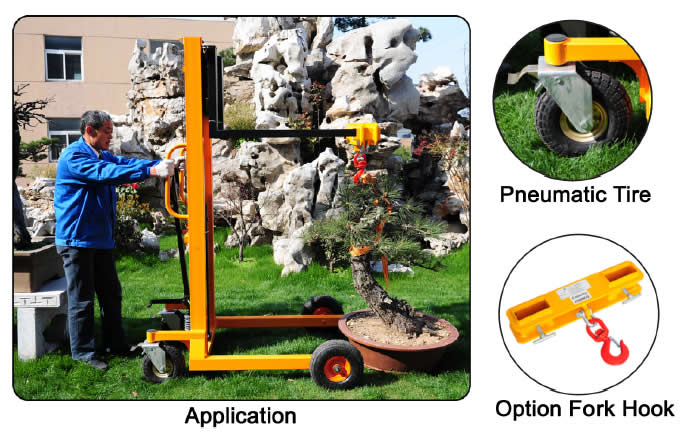

The OLIFT HMF1000 is a manual hydraulic garden stacker rated for loads up to 1,000 kg at a 585 mm load centre. Large rubber front and rear tyres are listed for indoor and outdoor use, with a hydraulic pump and a heavy-duty one-piece C-section fork design.
Adjustable forks are available as an option. The published table labels the 1,150 mm fork measurement as “Fork Width”; confirm the fork specification with OLIFT before ordering. Match the load weight and centre to the rated capacity and request a quotation for your application.
| Model | HMF1000 | |
|---|---|---|
| Capacity | kg | 1000 |
| Load Center | mm | 585 |
| Fork Height Min./Max. | mm | 88/1500 |
| Fork Width | mm | 1150 |
| Fork Width | mm | 160 |
| Overall Fork Width | mm | 540 |
| Overall Size | mm | 1604×760×1964 |
| Net Weight | kg | 220 |
Compare PFG reel stackers with 200 or 400 kg capacity and 870–1,500 mm maximum roller heights, depending on the model.
Compare 250, 500 and 1,000 kg manual winch stackers. WS25 and WS50 have adjustable forks; WS100 has fixed forks.
Compare PS platform stackers with foot-pedal lift, 600 × 500 or 650 × 550 mm platforms, and standard or low-platform configurations.
