Load & lift height
Confirm load weight, load centre and the lift height needed at the rack, platform or work position.
WAREHOUSE LIFTING & POSITIONING
Choose manual, semi-electric and electric pallet stackers for lifting and positioning palletised loads in warehouses, production areas and retail back rooms.
Product range
Open a product page for model-specific information, then send your quantity, destination and operating requirements for a relevant quotation discussion.

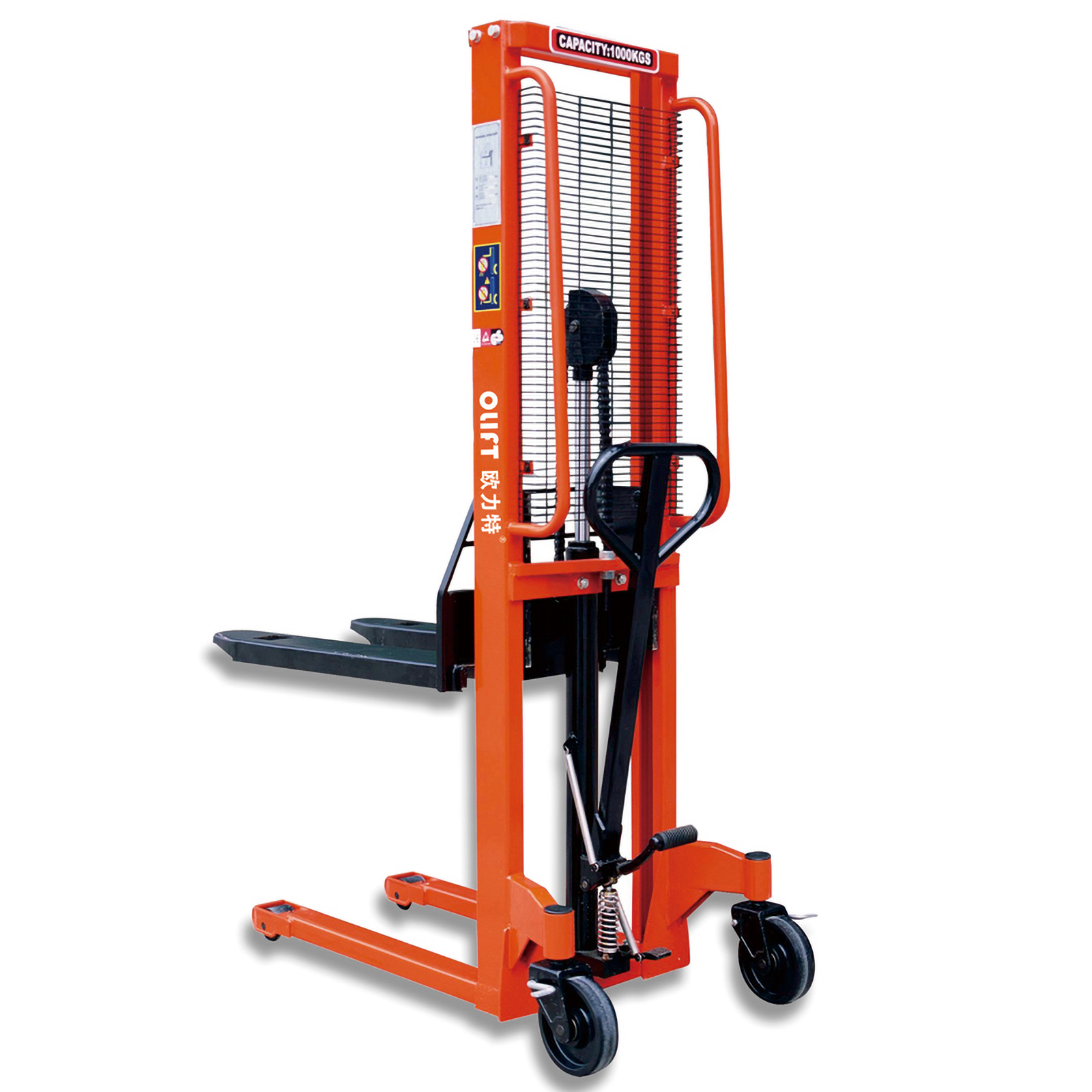

Manual stacker
A401–A406: 500–2,000 kg capacity and 1,600–3,000 mm maximum fork heights, depending on the model.
View model
Fork stacker
PF fixed forks or PJ adjustable forks; 200–400 kg capacity and 850–1,500 mm maximum fork heights.
View model
Platform stacker
PS series foot-pedal lifting with standard or low-platform configurations. Compare capacity and platform size by model.
View model
Electric stacker
NE4012PA/PB platform models or NE4012F adjustable forks; all three models are rated at 400 kg.
View model
Electric stacker
EF fixed forks or EJ adjustable forks; 200–400 kg capacity and 850–1,500 mm maximum fork heights.
View modelMore stacker models
Compare the lifting method and load support before choosing a model. Fork entry, platform size, load centre and required lift height should match your application.
| Model family | Operation and load support | Listed capacity |
|---|---|---|

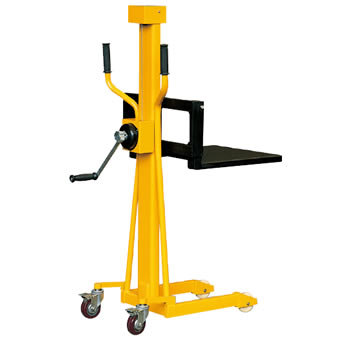

| LS80 / LS150 mini winch stackers | Manual cable winch with adjustable forks; 1,100 mm lift height | 80 or 150 kg |
| AWS / AWSL aluminum stackers | Manual winch and aluminum mast; compare fork widths and minimum clearance | 181 or 227 kg |
| EP·A electric platform stackers | Electric lift with a flat platform; model heights up to 1,800 mm | 200–400 kg, by model and configuration |
| EL-C pedestrian electric pallet stackers | EL10C, EL12C and EL15C; confirm mast and fork configuration | 1,000 / 1,200 / 1,500 kg |
| EL12EM / EL15EM lithium-ion pallet stackers | Standing operator type with arm guards; confirm the model-specific mast option | 1,200 or 1,500 kg |
Capacities are model-specific. Use the linked product specifications to compare lift height and dimensions, then send OLIFT your load, quantity and destination for a configuration-specific quotation.
Additional stacker types
Use the product links below to compare eight additional families. Match the load weight, load centre, support surface and required working height to the exact model.

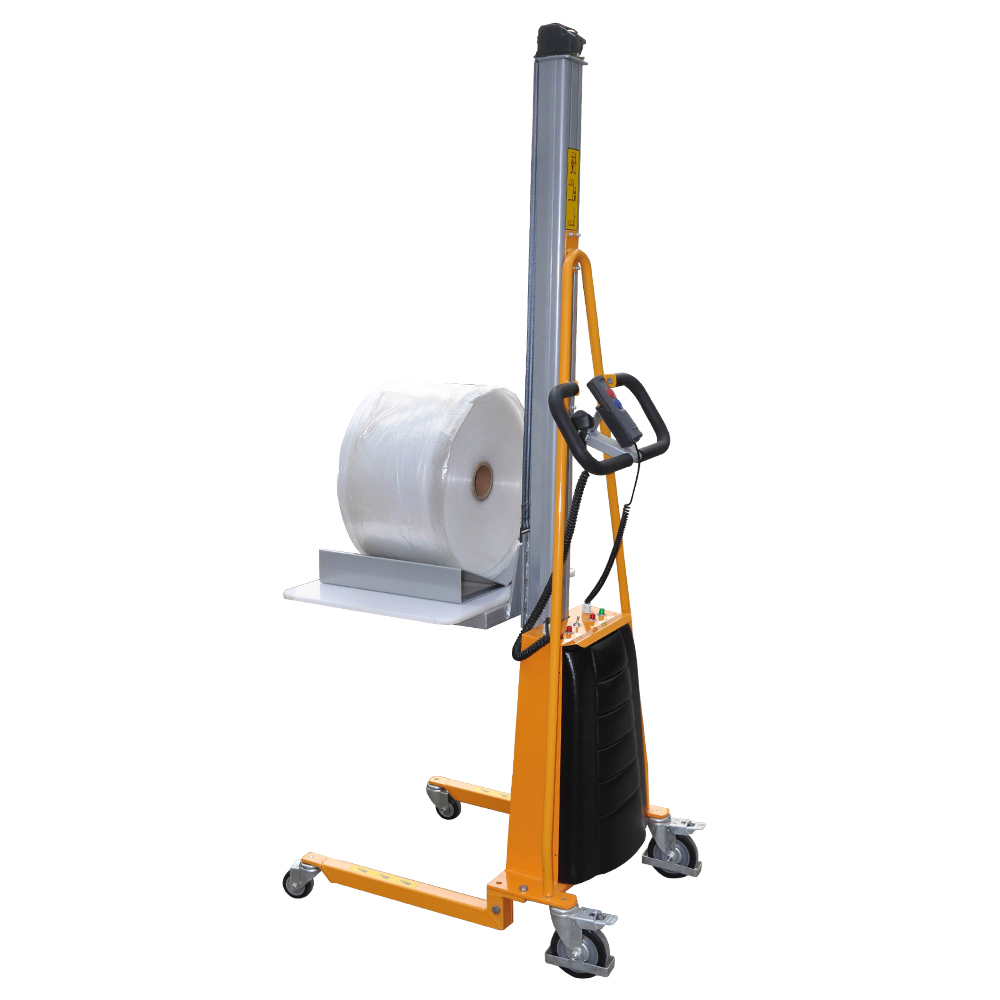

E100: 100 kg capacity and 1,700 mm maximum fork height. E150: 150 kg and 1,500 mm. Both list a 470 × 600 mm platform.
100 or 200 kg capacity with 1,500 mm maximum platform height. L variants lower the minimum platform height to 85 mm.
200 or 400 kg capacity for cylindrical reels. Compare 100–600 mm reel diameters and 870–1,500 mm maximum roller heights by model.
200 or 400 kg capacity with maximum platform heights from 940 to 1,270 mm. Compare 620 × 520 and 670 × 590 mm platforms.
400 kg capacity with 1,200, 1,500 or 1,800 mm maximum fork height. Choose PF-S fixed forks or PJ-S adjustable forks.
200–400 kg capacity and 850–1,800 mm maximum fork heights by model. Fork widths adjust to 215–500 or 235–500 mm.
250, 500 or 1,000 kg rated capacity, respectively. WS25 and WS50 have adjustable forks; WS100 is listed with fixed forks.
1,000 kg rated capacity at a 585 mm load centre, with 1,500 mm maximum fork height. Check tyres and route conditions for your application.
Listed capacities and lift heights depend on the model. Send the load dimensions, operating route and required quantity with your quotation request.
Pallet stacker selection
A suitable stacker depends on the load, required lift height, available aisle space and how often the equipment is used during each shift.
Confirm load weight, load centre and the lift height needed at the rack, platform or work position.
Check travel route, turning area, mast clearance and the floor conditions where the stacker will operate.
Share handling frequency and travel distance to compare manual, semi-electric and powered solutions.
Manual stacker specifications
The OLIFT A401–A406 manual stacker range has rated capacities from 500 to 2,000 kg and maximum fork heights from 1,600 to 3,000 mm, depending on the model. Compare each model below; the highest capacity and highest lift height belong to different configurations.
| Model | Rated capacity (kg) | Maximum fork height (mm) |
|---|---|---|
| A401 | 500 | 1,600 |
| A402 | 1,000 | 1,600 |
| A403 | 1,500 | 1,600 |
| A404 | 2,000 | 1,600 |
| A405 | 1,000 | 2,500 |
| A406 | 1,000 | 3,000 |
Source: OLIFT Manual Stacker technical specifications. Confirm the model, load centre, required lift height and pallet compatibility with OLIFT before ordering.
A pallet stacker lifts and positions loads at height. A standard pallet truck is mainly used to move pallets horizontally, lifting them enough for travel. Start with pallet trucks for floor-level pallet movement, or compare the stackers above when the task requires vertical lifting. Share your load weight, target height and operating space to confirm a suitable model.
Before you enquire
Buyer questions
A suitable stacker depends on the load, required lift height, available aisle space and how often the equipment is used during each shift.
Tell us the load weight, lift height, pallet size and aisle width. These details help us recommend a relevant mast and drive configuration.

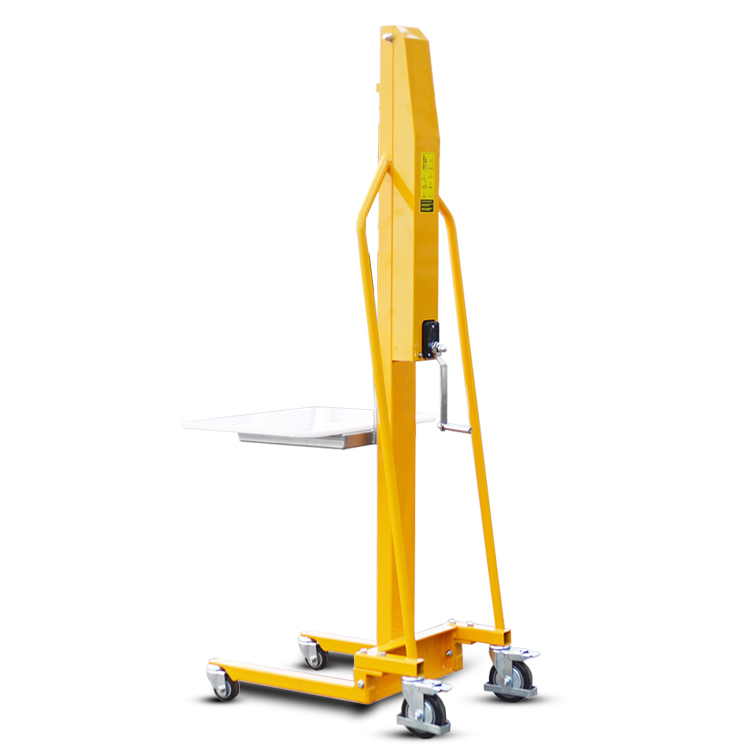

For cylindrical reels, compare PFG roller hand stackers and check reel weight, diameter and roller dimensions. For smaller loads at a workstation, compare E100/E150 electric double shaft rod stackers or M100/M200 manual work positioning stackers. Confirm load support and working height before choosing a model.
Yes. Send your application, load details, operating conditions, required quantity and destination country. Our sales team can discuss relevant product options for your enquiry.
Send your preferred model, quantity, destination and application details. We will reply with relevant product information and quotation guidance.
