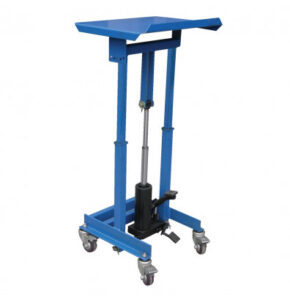

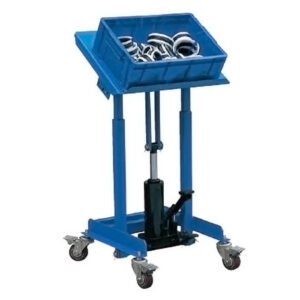

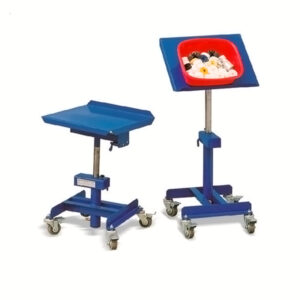

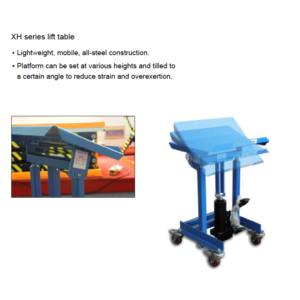

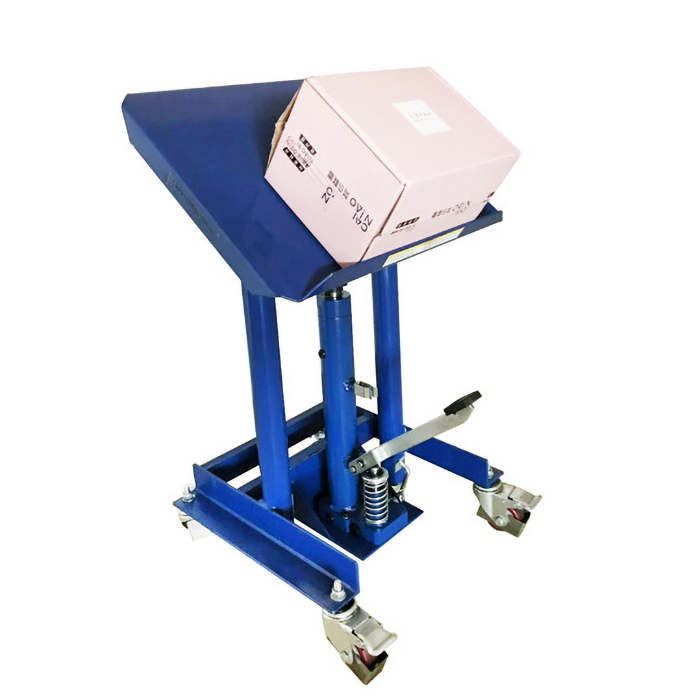

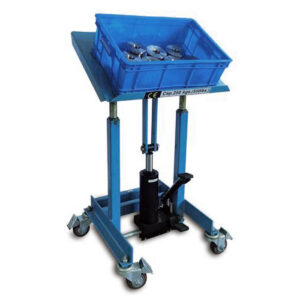

OLIFT XH and XL mobile tilting work tables combine foot-operated hydraulic height adjustment with a platform that tilts from 0° to 40°. The XH15 and XH25 both adjust from 725 to 1,080 mm, with rated capacities of 150 and 250 kg respectively. The 150 kg XL15A adjusts from 510 to 700 mm, while the 150 kg XL15B adjusts from 720 to 1,070 mm. Four swivel casters let you move the table between work areas.
| Model | XH15 | XH25 | XL15A | XL15B | |
|---|---|---|---|---|---|
| Type | Adjustable | Adjustable | |||
| Capacity | (kg) | 150 | 250 | 150 | 150 |
| Table Height Range | (mm) | 725-1080 | 725-1080 | 510-700 | 720-1070 |
| Adjustable Table Angle | 0-40° | 0-40° | 0-40° | 0-40° | |
| Foot pedals | 55 | 60 | 28 | 30 | |
| Net Weight | (kg) | 63 | 66 |

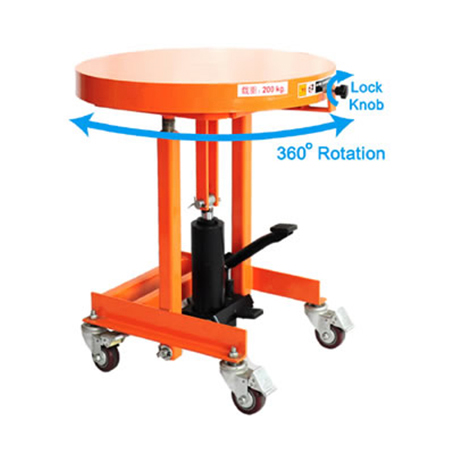

Reasonable design for easy job Table could be 360° rotation
The Lift &Tilt Tables are specifically designed to allow an operator to feed and unload parts from tote boxes or containers quickly and easily without lifting, bending, stretching, or reaching. Design with overload protection, safe and reliable.

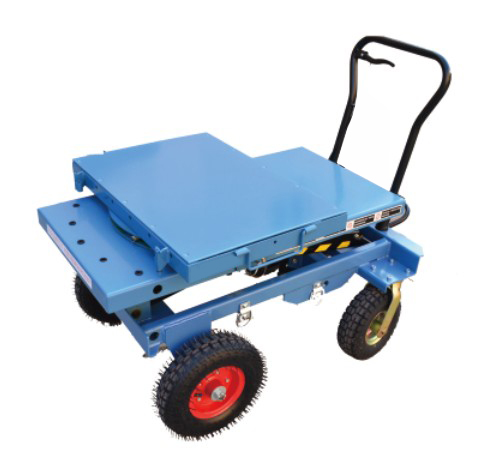

Heavy duty rough terrain lift table ideal for use outside, such as in Garden. Handle with tool box pneumatic tires with brake system. protects your goods, tepless rate of lowering system remains irrespective of the weight of the load.
