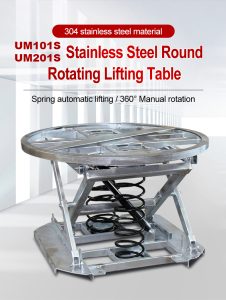

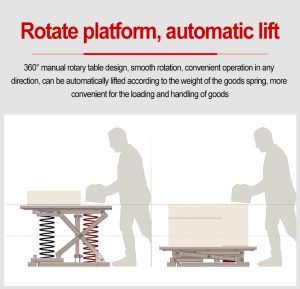

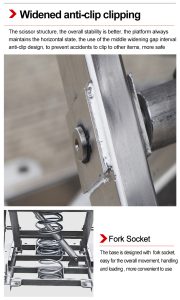

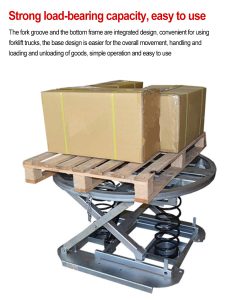

OLIFT UM101S and UM201S pallet levelers use a spring mechanism to adjust the platform height as boxes are added or removed. The mechanism requires no electrical power. Both models use SUS304 stainless steel, and the turntable lets operators rotate the load for access from one side. Fork pockets allow the unit to be moved with suitable equipment.
| Model | UM101S | UM201S | ||||||
|---|---|---|---|---|---|---|---|---|
| Rated Capacity | 1000 | 4500LBS | 2000 | 4500LBS | ||||
| Type | SUS304 | SUS304 | ||||||
| Min. Height of Platform | 250 | 9-1/2’’ | 250 | 9-1/2’’ | ||||
| Max. Height of Platform | 710 | 27-3/4’’ | 710 | 27-3/4’’ | ||||
| Platform size | 1110 | 43-3/4’’ | 1110 | 43-3/4’’ | ||||
| Base Size | 920*930 | 36*36-3/4’’ | 920*930 | 36*36-3/4’’ | ||||
| Net Weight | 152KG | 345LBS | 195 | 435LBS |
*Small platform for special size material. *High quality norm power pack from Europe for stable and safe lifting. *Upper platform fitted with aluminium safety bar preventing descent on contact with obstructions
Hydraulic lifting system, the far-end control and multi-control points at the different floors could be realized hierarchical control. Stop anywhere at the pre-concerted and accurate location point.

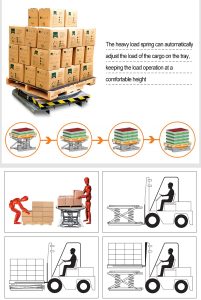

Self-leveling fully adjustable, weight sensitive. Designed to maintain an ideal working height for assembly lines and loading/unloading operations. Balance to achieved by double springs fitted to the shock absorbers. Simple to operate spring tension adjustment.
Industrial lifting, moving, positioning and towing equipment for international buyers and project applications.
Request a QuoteQingdao, China
Send the model, load, quantity and destination for a more relevant reply.
